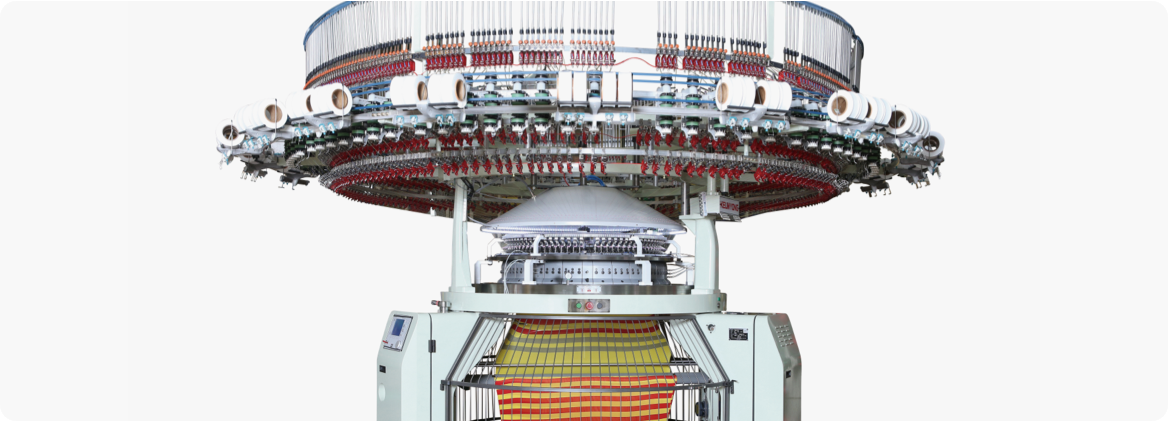

SINGLE JERSEY MULTI-FEEDS AUTO-STRIPER MACHINE

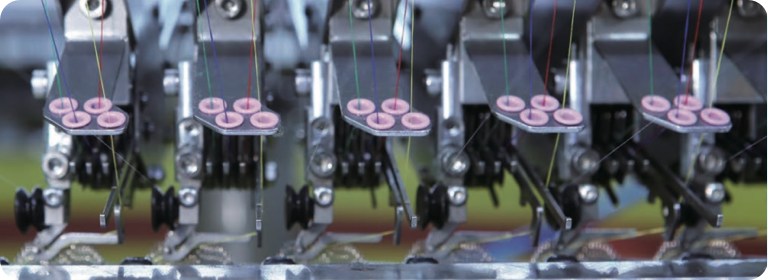

Model has been designed to make striper fabric with 4 colors & Multi feeds by using unique striper system. This striper system has been constructed by simple mechanical structure for easy use and management. The striper patterns are designed by the full computerized pattern design system.

KSST-72

DIAMETER	GAUGE(N.P.I)	NO. FEEDER	NO. NEEDLE	SPEED(R.P.M)

30”	16-26G	72F	16G1,512	20-25
			20G1,896
			24G2,256
			28G2,640

36”	16-26G	84F	16G1,800	16-20
			20G2,256
			24G2,712
			28G3,168

FEEDING DEVICE	Positive Feeding Device
DRIVING	7.5HP AC Motor & Inverter
CYLINDER CAM	4 Track, 3 Position of needle selection (Knit, Tuck & Miss) by changing cams

STANDARD SPECIFICATION

• Cylinder diameter, needles per inch, number of feeds are as described above, so please order the machine according to requirements
• Cylinder cams for machines with 2 to 4 cam tracks are 3 position select available by changing cams. For single jersey machine ordered with 4 cam tracks in the cylinder, 4 knit cams, 1 tuck and 1 welt cams per feed are supplied with the machine as standard. Others are optional.
• AC Motor with inverter control unit
• Plating fabrics can be knitted by provided yarn carrier and yarn carrier plates are purchased
• Positive yarn feeding device
• Side creel stand with double tie
• Venti-Cleaner
• Spreader size ring system
• Speed of machine depending upon yarn used, kitting condition, gauge etc. The machine speed can be either increased or decreased. So please select the optimum speed for the machine according to the machine condition. The speed figures shown on this table are given only as a reference

OPTIONAL PARTS

• High leg type frame for big roll
• Open width take-up device
• Fabric cutting device

INTEGRATED CONTROLLER

• Fully integrated driving control mode with characters and graphic
• Self-diagnosis and alarm function
• Auto take-down tension and speed control system
• Easy setting method and bar-graphic digital indicating for all functions

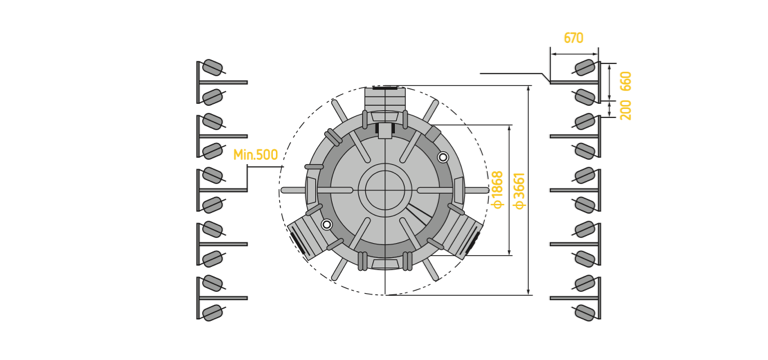

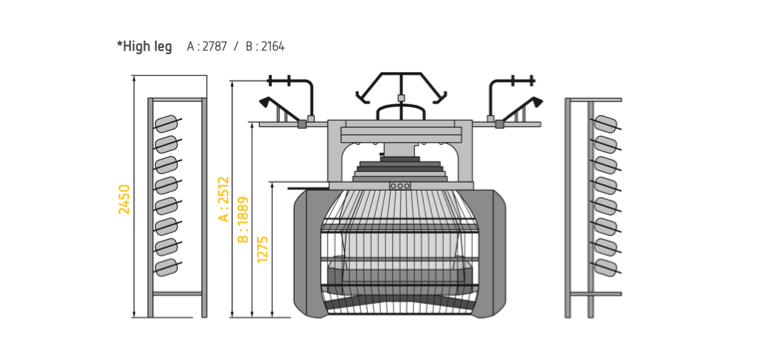

STANDARD DIMENSIONS

PACKING DIMENSIONS

KSST-48	36” Diameter

Approx. Net weight	2,500kg
Approx. Gross weight	3,000kg
Case size (mm)	2,460x2,270x2,250 (Length Width Height)

FABRIC VARIETY
