PRODUCT

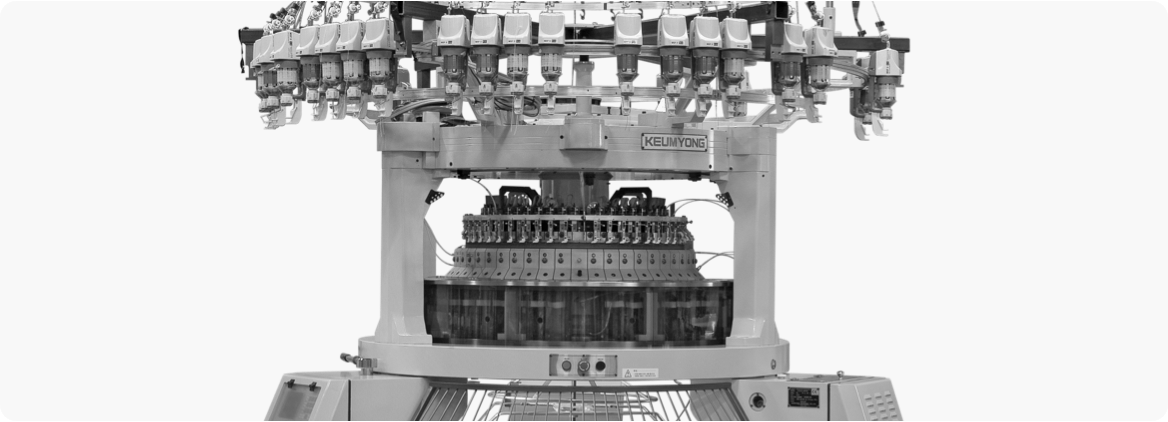

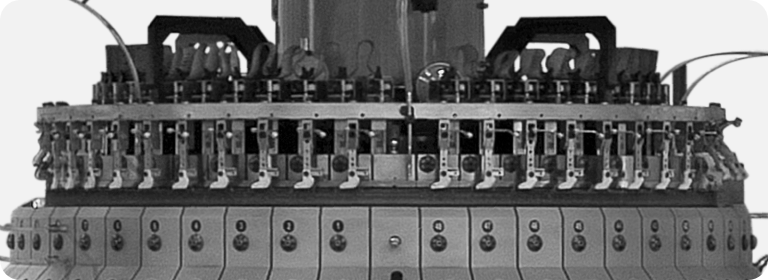

COMPUTERIZED JACQUARD MACHINE
KCDJD-4810M
DOUBLE KNIT DOUBLE SELECTION
ELECTRONIC JACQUARD KNITTING MACHINE
Double Knit jacquard with fully electronic machine makes new maker and ere in home textile application garment & for the shoe fabric precise and perfect individual needle selection and unlimited pattern designs create quality jacquard and special production in garment and home textile industry.
![](/textile/include/_Img/Product/03/03/img-product-sub.png)
KCMJD-169S
DIAMETER | 30" / 34" / 36" / 38" | |||||||||||||||||||||||||
GAUGE | 12G to 22G | |||||||||||||||||||||||||
NO. OF FEEDER | 48F / 54F / 56F / 60F | |||||||||||||||||||||||||
NO. OF NEEDLE (CUT) |
|
|||||||||||||||||||||||||
FEEDING DEVICE | Storage Feeder | |||||||||||||||||||||||||
DRIVING | 7.5HP AC Motor & Inverter | |||||||||||||||||||||||||
COMPUTER CONTROLLER |
WAC Controller, WAC Actuator | |||||||||||||||||||||||||
Cylinder | 3 position needles selection by WAC (Knit, Tuck & Welt) | |||||||||||||||||||||||||
Dial Cam | 2 position needles selection by WAC with support function | |||||||||||||||||||||||||
Structure | Full jacquard with 3 position needle selection in cylinder |
- Needle selection at both cylinder and dial by WAC actuator
- Cylinder 3 position needles selection
- Dial 2 position needles selection
- Unlimited creativity in pattern designs
- Pattern save & storage in USB stick
STANDARD SPECIFICATION
- Cylinder diameter, needles per inch, number of feeds as described above, so please order the machine according to requirements
- AC motor with inverter control unit
Cylinder Diameter | 12” - 28" | 30” - 38" |
AC Motor | 5HP | 7.5HP |
- Dial and cylinder needle detectors
- Tube side creel with double tie
- Storage yarn feeding device
- Venti-Cleaner
- Spreader size ring system
- Oil mist lubricator for needle and cams with dust blower
- Speed of machine is depending upon yarn used, knitting condition, gauge etc. The machine speed can either increased or decreased
- The speed figures on this table are given only as guide
OPTIONAL PARTS
- KYMS(Keumyong Yarn Measuring System)
Elastane yarn feeding device
Pattern design software
- High leg type frame for big roll
- Real time production monitoring system
Double Roll Take-up device
Fabric cutting device
INTEGRATED CONTROLLER
![](/textile/include/_Img/Product/product_controller.png)
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions

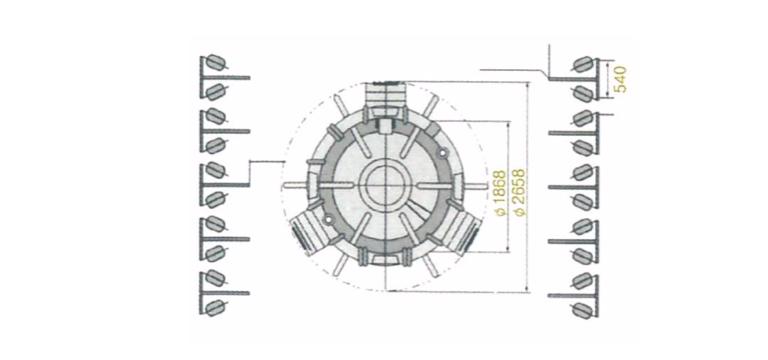

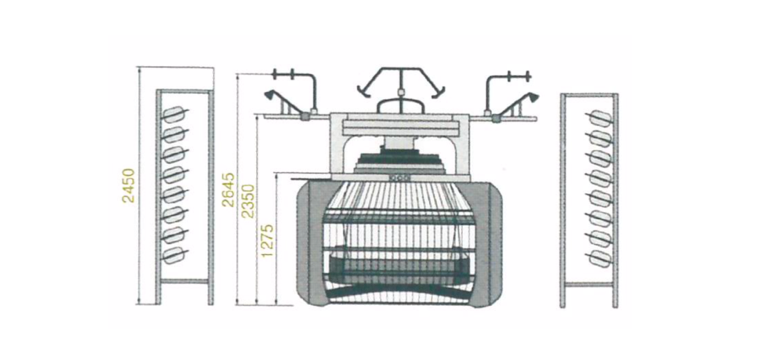

STANDARD DIMENSIONS
![](/textile/include/_Img/Product/03/03/img-standard-01-2.png)
![](/textile/include/_Img/Product/03/03/img-standard-02.png)
PACKING DIMENSIONS
KCDJ-IV | 30” Diameter |
---|
Approx. Net weight | 3,000kg |
Approx. Gross weight | 3,300kg |
Case size (mm) | 2,390x2,250x2,300 (Length Width Height) |
FABRIC VARIETY
![](/textile/include/_Img/Product/03/03/img-standard-02-2.png)
![](/textile/include/_Img/Product/03/03/img-standard-02-3.png)
