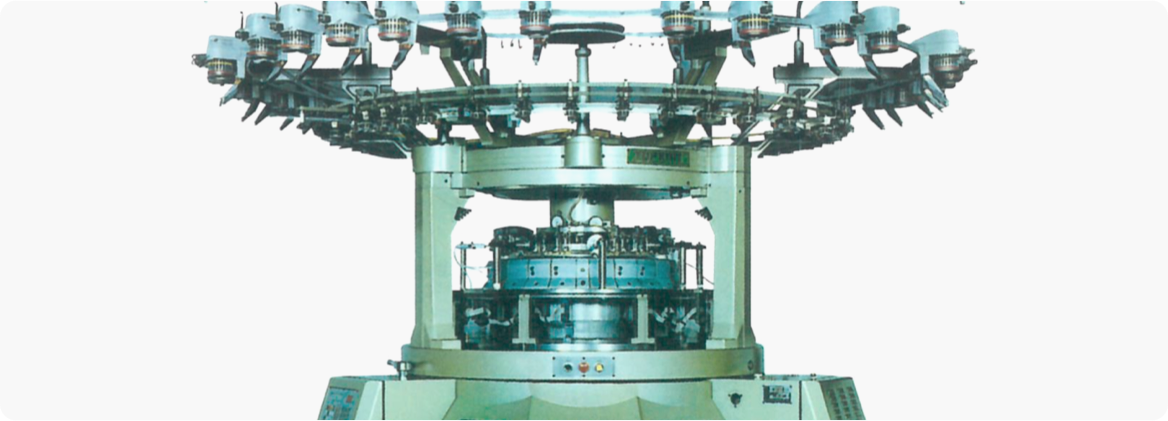

COMPUTERIZED PLUSH JACQUARD KNITTING MACHINE

This machine is the latest and newly developed computerized plush jacquard machine with advanced technology. And this provides high quality and fashion fabric for clothes and fabric industry with unlimited pattern and design.

KYPL-CV

MODEL	DIAMETER	GAUGE(N.P.I)	SPEED(RPM)	PILE LENGTH

KYPL-CV/18	26” x 16F	18-22	15-18	6-14mm
	30” x 18F	18-22	13-16	6-14mm
	36” x 22F	18-22	11-14	6-14mm

KYPL-CV/16	26” x 16F	14-16	15-18	15-20mm
	30” x 18F	14-16	13-16	15-20mm
	36” x 22F	14-16	11-14	15-20mm

STANDARD SPECIFICATION

• WAC Computer controller system
• Easy adjustment of pile-length
• Lycra-plating is available
• MPF-positive feeding device
• Venti-cleaner
• Spreader size ring system

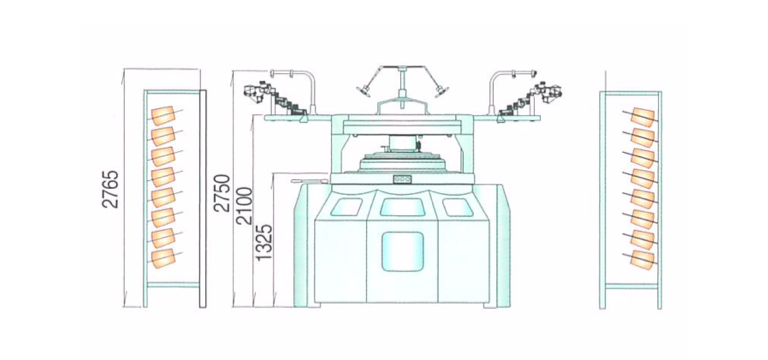

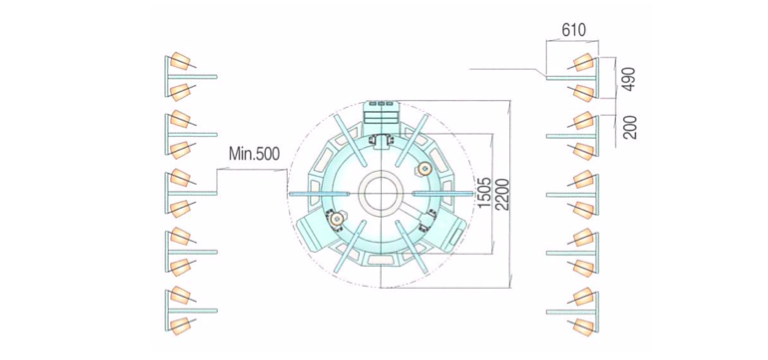

STANDARD DIMENSIONS

PACKING DIMENSIONS

KYPL-CV	26” Diameter

Approx. Net weight	2,800kg
Approx. Gross weight	3,100kg
Case size (mm)	2,370x2,250x2,270 (Length Width Height)

FABRIC VARIETY
