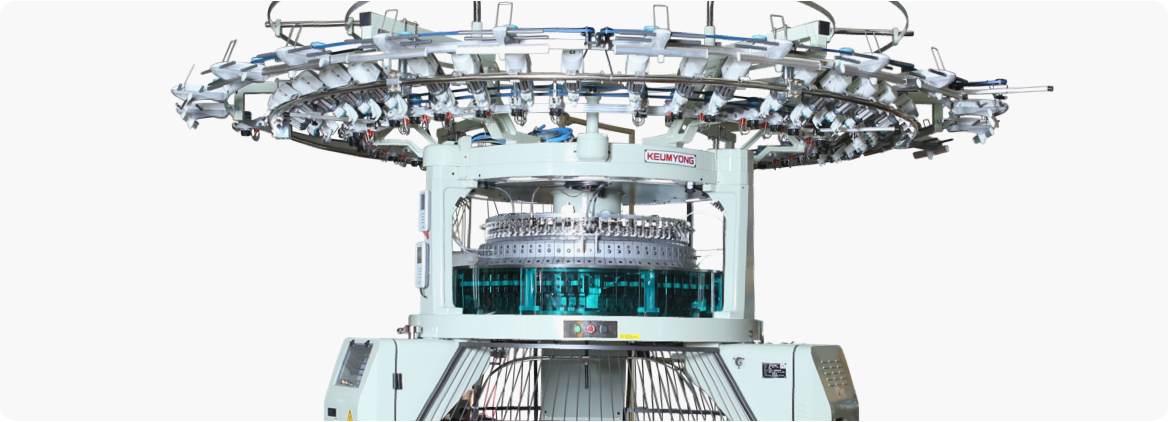

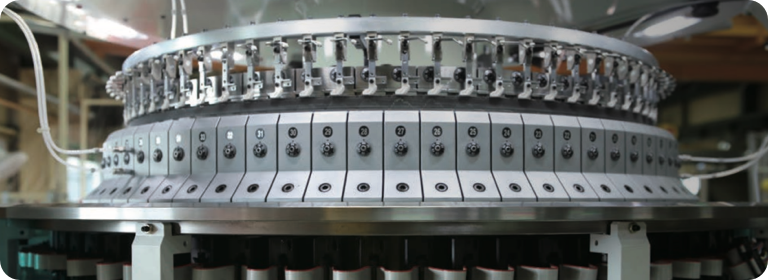

Computerized Double-Knit Electronic JAcquard Machine

This Model is the latest full computerized jacquard machine with electronically & technically advanced and controlled by WAC controller. The KCDJ-III machine offers reduction in down time for pattern change as well as unlimited application and prospects for development.

KCDJ-III

DIAMETER	GAUGE(N.P.I)	NO. FEEDER	NO. NEEDLE	SPEED(R.P.M)

30"	18-28G	60F 72F	18G1,704	18-22
			20G1,896
			22G2,064
			24G2,256
			26G2,448
			28G2,640

32"	18-28G	64F 72F	18G1,800	18-22
			20G2,016
			22G2,208
			24G2,400
			26G2,616
			28G2,808

34"	18-28G	68F 84F	18G1,920	17-21
			20G2,136
			22G2,352
			24G2,568
			26G2,784
			28G3,000

36"	18-28G	72F 84F	18G2,040	15-19
			20G2,256
			22G2,496
			24G2,712
			26G2,928
			28G3,168

38"	18-28G	76F	18G2,136	15-19
			20G2,376
			22G2,616
			24G2,856
			26G3,096
			28G3,336

FEEDING DEVICE	Storage Feeder
DRIVING	7.5HP AC Motor & Inverter
COMPUTER CONTROLLER	WAC Controller, WAC Actuator
CYLINDER	3 Position of needle selection (Knit, Tuck &Miss) by computer control.
DIAL CAM	4 Position (Knit, Tuck, Miss & Support position) in two race cam system
STRUCTURE	2 feeders per diametrical inch

- Needle selection at cylinder by selector

- Cylinder 3 position needles selection

- Unlimited creativity in pattern designs

- Pattern save & storage in USB stick

STANDARD SPECIFICATION

• WAC Ceramic 3 position (welt, tuck, knit) needle selection device
• Dial cam : 4 position (welt, tuck, knit and support position) in two race cam system
• Cam timing : Synchronized timing
• Yarn feeding device : SFE storage feeding wheel (Option : MSF,LGL)
• Size ring : Spreader System
• Driving : A.C Motor with inverter

OPTIONAL PARTS

• KYMS(Keumyong Yarn Measuring System)

  Elastane yarn feeding device

  Pattern design software

• High leg type frame for big roll
• Real time production monitoring system

  Double Roll Take-up device

  Fabric cutting device

INTEGRATED CONTROLLER

• Fully integrated driving control mode with characters and graphic
• Self-diagnosis and alarm function
• Auto take-down tension and speed control system
• Easy setting method and bar-graphic digital indicating for all functions

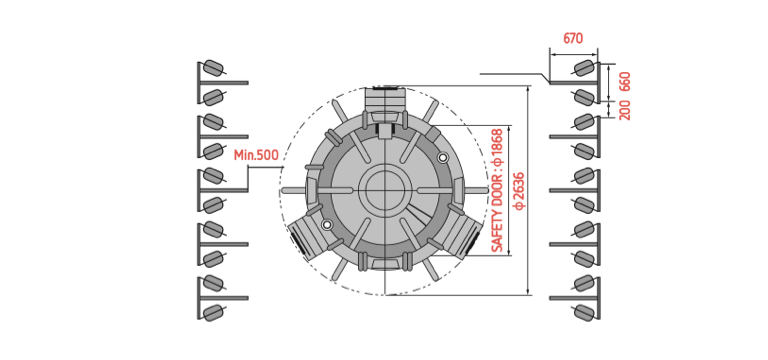

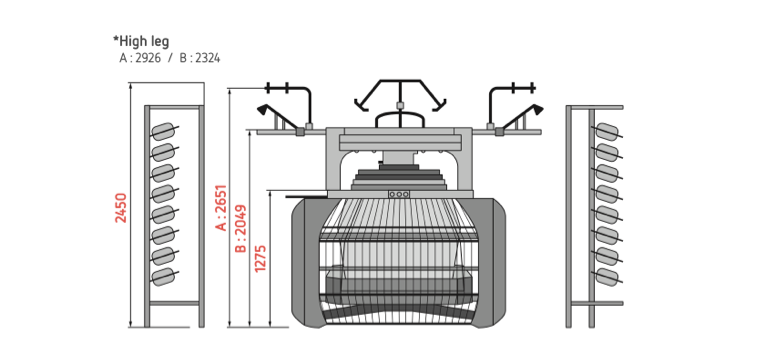

STANDARD DIMENSIONS

PACKING DIMENSIONS

KCDJ-III	30” Diameter	36” Diameter

Approx. Net weight	3,100kg	3,400kg
Approx. Gross weight	3,800kg	4,100kg
Case size (mm)	2,460x2,270x2,250 (Length Width Height)	2,460x2,270x2,250 (Length Width Height)
