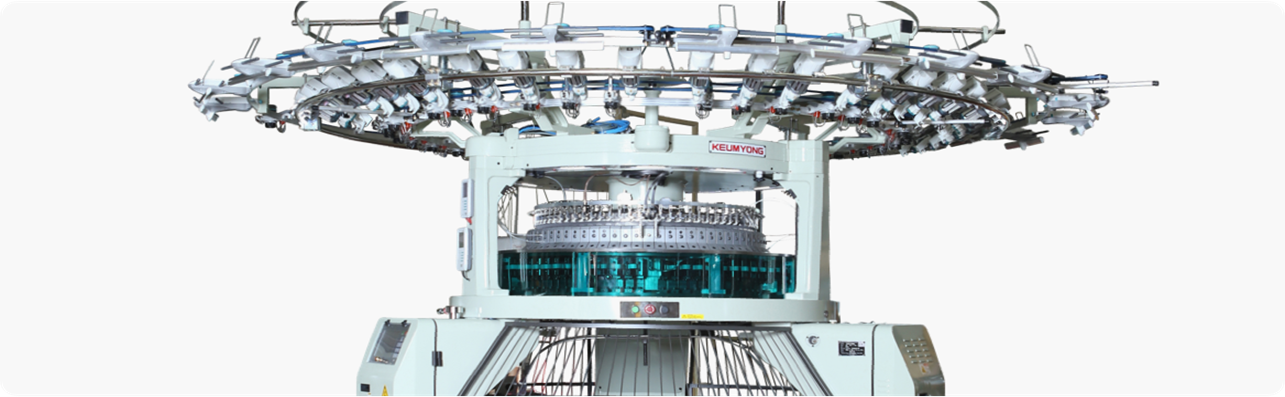

ELECTRONIC JACQUARD FOR MATTRESS TICKING MACHINE

This model is the latest fully computerized jacquard and especially developed for mattress cover production in high productivity.
This machine has specially designed yarn carriers, needles and elements for reliable operation.
And this model is controlled by enhanced WAC controller and offers reduction in down time for pattern change as well as unlimited application and infinite prospects for development.

This machine equip very special storage feeding system which can control tension each yarn individually.

KCDJ-IV

DIAMETER	GAUGE(N.P.I)	FEED	REMARK

38"	20F	60F	Normal Size
42"	20F	68F	Special Size

STANDARD SPECIFICATION

• WAC Ceramic 3 position (welt, tuck, knit) needle selection device
• Dial cam : 4 position (welt, tuck, knit and support position) in two race cam system
• Cam timing : Synchronized timing

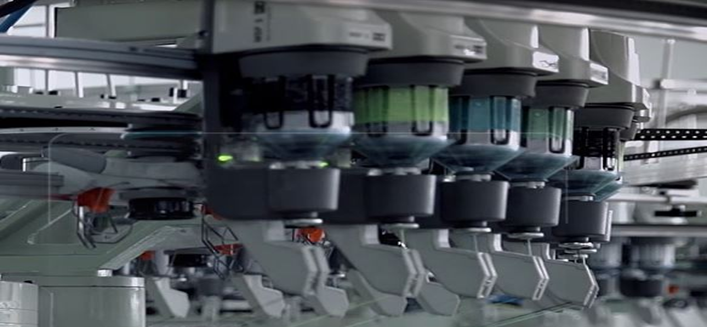

• Yarn feeding device : SET/SFE storage feeding wheel
• Size ring : Spreader System
• Driving : A.C Motor with inverter

OPTIONAL PARTS

• Choice of storage feeding system : LGL, Memminger
• Choice of machine frame : Normal, High leg frame

INTEGRATED CONTROLLER

• Fully integrated driving control mode with characters and graphic
• Self-diagnosis and alarm function
• Auto take-down tension and speed control system
• Easy setting method and bar-graphic digital indicating for all functions

PACKING DIMENSIONS

KCDJ-IV	38” Diameter

Approx. Net weight	3,800kg
Approx. Gross weight	4,700kg
Case size (mm)	2,250x2,350x2,550 (Length Width Height)

FABRIC VARIETY
