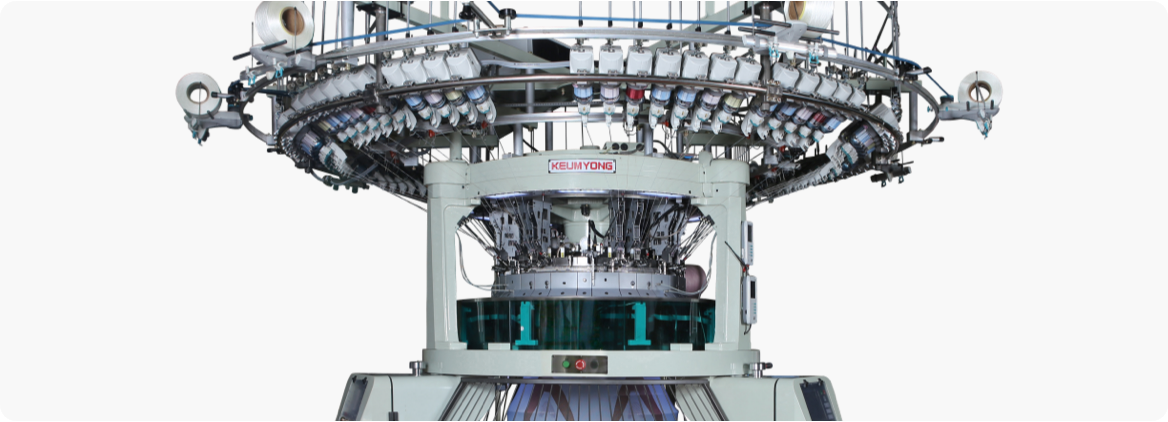

COMPUTERIZED JACQUARD MACHINE
KCMJD-169S
& KCMJD-169ST
DOUBLE KNIT ELECTRONIC FULL JACQUARD
WITH RIB-MESH MACHINE
Double jersey jacquard & fully electronic with rib-mesh machine to break into absolutely new market like fashion garments and for the shoe fabrics. The electronic individual needle selection and unlimited patterning variety realize the quality jacquard and versatility of fabrics.
KCMJD-169S
| DIAMETER | 30" / 34" | |||||||||||||||
| GAUGE | 12G to 18G | |||||||||||||||
| NO. OF FEEDER | 16 Knit Feeds + Cylinder 8Transfer feeds + Dial 4Transfer feeds 18 Knit Feeds + 9Transfer feeds |
|||||||||||||||
| NO. OF NEEDLE (CUT) |
|
|||||||||||||||
| FEEDING DEVICE | Storage Feeder | |||||||||||||||
| DRIVING | 7.5HP AC Motor & Inverter | |||||||||||||||
| LUBRICATOR | Pulsonic | |||||||||||||||
| COMPUTER CONTROLLER |
WAC Controller, WAC Actuator | |||||||||||||||

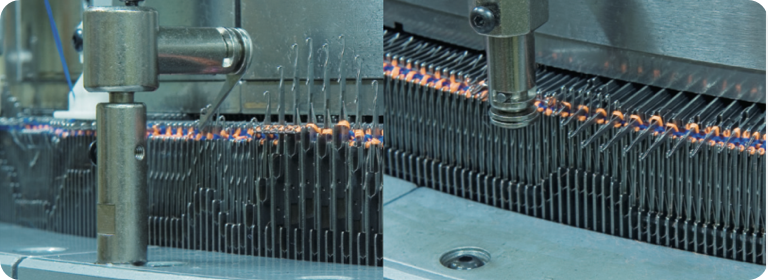

| CYLINDER | 3 position needles selection by WAC (Knit, Tuck & Welt) | |||||||||||||||
| DIAL CAM | 2 position needles selection by WAC with support function | |||||||||||||||
| STRUCTURE | - Full jacquard with 3 position needle selection in cylinder. - Rib transfer jacquard |
- Needle selection at both cylinder and dial by WAC actuator
- Cylinder 3 position needles selection
- Dial 2 position needles selection
- Rib-mesh transfer jacquard
STANDARD SPECIFICATION
- Cylinder diameter, needles per inch, number of feeds as described above, so please order the machine according to requirements
- AC motor with inverter control unit
| Cylinder Diameter | 12” - 28" | 30” - 38" |
| AC Motor | 5HP | 7.5HP |
- Dial and cylinder needle detectors
- Tube side creel with double tie
- Storage and Positive yarn feeding device
- Venti-Cleaner
- Spreader size ring system
- Oil mist lubricator for needle and cams with dust blower
- Speed of machine is depending upon yarn used, knitting condition, gauge etc. The machine speed can either increased or decreased
- The speed figures on this table are given only as guide
OPTIONAL PARTS
- KYMS(Keumyong Yarn Measuring System)
Elastane yarn feeding device
Pattern design software
- High leg type frame for big roll
- Real time production monitoring system
Double Roll Take-up device
Fabric cutting device
INTEGRATED CONTROLLER
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions

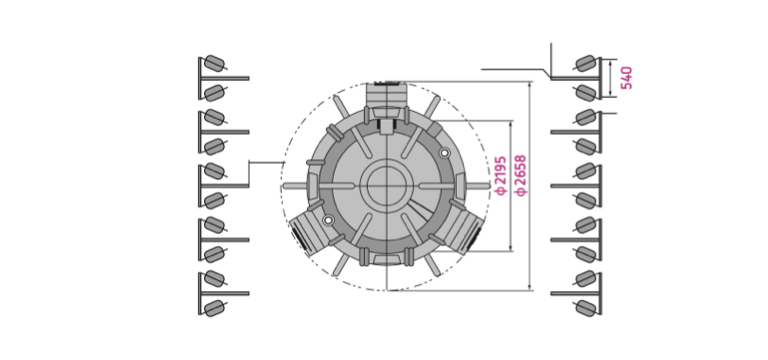

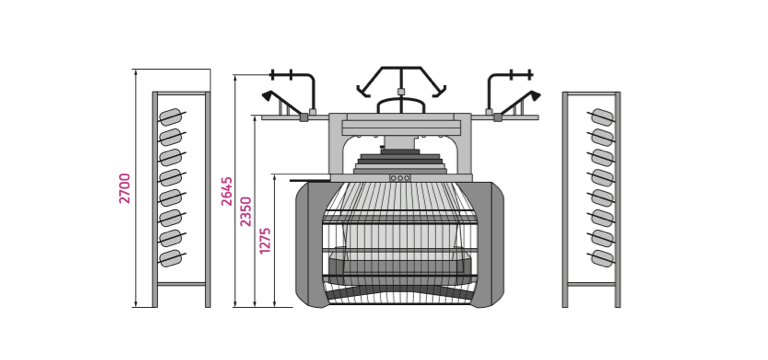

STANDARD DIMENSIONS
PACKING DIMENSIONS
| KCDJ-IV | 30” Diameter |
|---|
| Approx. Net weight | 3,000kg |
| Approx. Gross weight | 3,300kg |
| Case size (mm) | 2,390x2,250x2,300 (Length Width Height) |
FABRIC VARIETY
