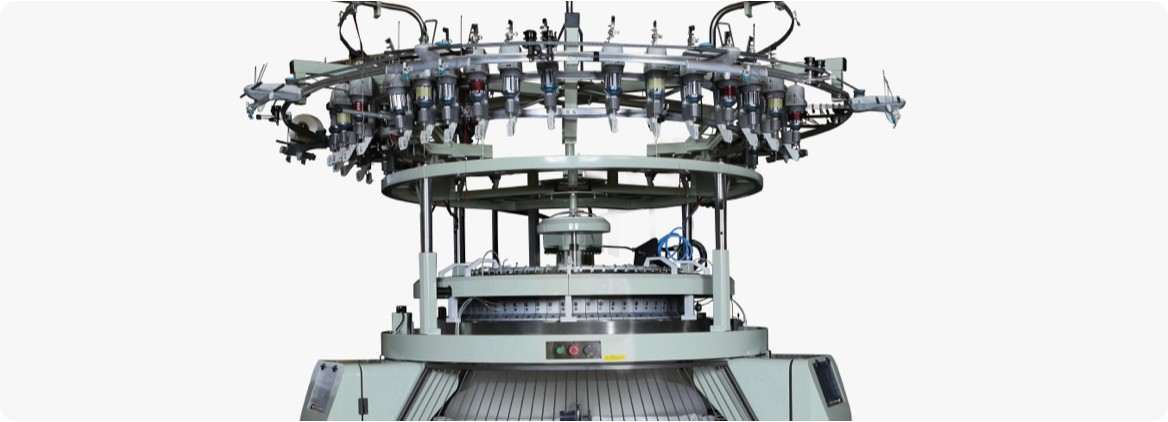

COMPUTERIZED PILE-LOOP KNIT
ELECTRONIC JACQUARD MACHINE

Specially has been designed for making pile-loop knit jacquard fabric by applying a new concept and unique technology. The movement of new type of SINKER, which electronically controlled and selected, provides various and quality pile Jacquard fabrics.

This machine is equipped very special storage feeding system which can control tension each yarn individually.

KCPJ-III / 3A, 2A

DIAMETER	GAUGE(N.P.I)	NO. FEEDER	NO. NEEDLE	SPEED(R.P.M)

26"	16-24G	40F	161,296	20-25
			181,464
			201,632
			221,800
			241,968

30"	16-24G	48F	161,512	18-20
			181,704
			201,896
			222,064
			242,256

32"	16-24G	50F	161,608	16-18
			181,800
			202,016
			222,208
			242,400

34"	16-24G	54F	161,704	16-18
			181,920
			202,136
			222,352
			242,568

36"	16-24G	40F	161,800	14-16
			182,040
			202,256
			222,496
			242,712

FEEDING DEVICE	Ground : Positive Feeder Pile : Storage Feeder
DRIVING	7.5HP AC Motor & Inverter
COMPUTER CONTROLLER	WAC Controller, WAC Actuator

- Sinker selection at cylinder by selector

- Unlimited creativity in pattern designs

- Pattern save & storage in USB stick

- Note : Speed depends on fabric structure and yarn material

STANDARD SPECIFICATION

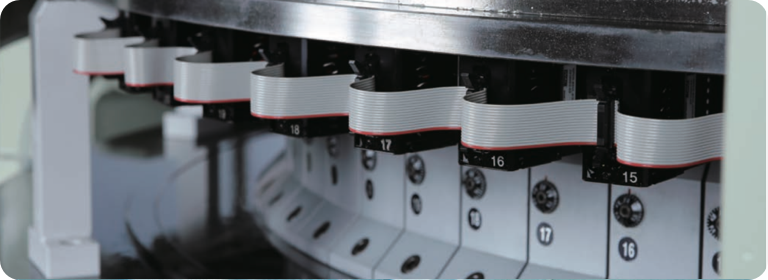

• Electronic selection device for sinker pin
• Motorized fabric take-down system
• Storage yarn feeding device(SFE)
• Positive feeding device
• Pile-loop Length can be adjustable
• Ground, low pile and high pile can be knitted simultaneously (3-color pattern is available)
  (1.8mm, 2.1mm, 2.4mm, 2.9mm, 3.2mm, 3.5mm, 1.6-3.3mm, 2.0-3.7mm : Optional Sinker Change)

OPTIONAL PARTS

• Parts for 3 pile

  (Cam, yarn carrier, gear, etc.)

INTEGRATED CONTROLLER

• Fully integrated driving control mode with characters and graphic
• Self-diagnosis and alarm function
• Auto take-down tension and speed control system
• Easy setting method and bar-graphic digital indicating for all functions

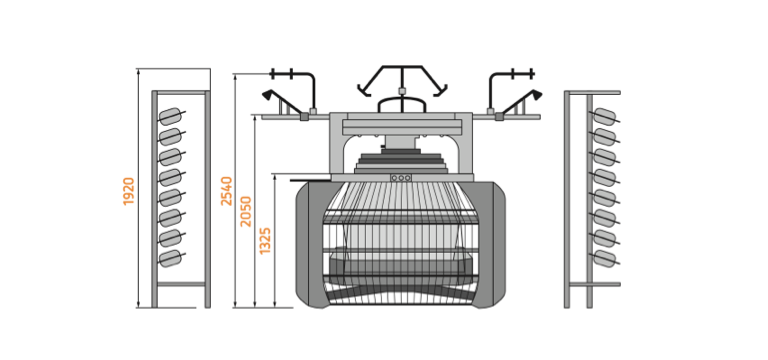

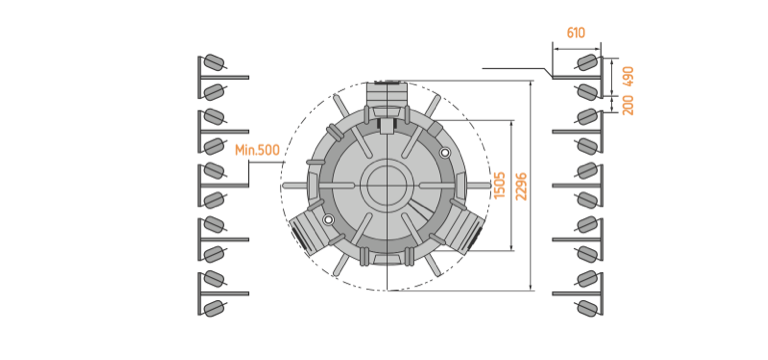

STANDARD DIMENSIONS

PACKING DIMENSIONS

KCPJ-III / 3A, 2A	30” Diameter

Approx. Net weight	2,300kg
Approx. Gross weight	2,700kg
Case size (mm)	2,440x2,270x2,250 (Length Width Height)

FABRIC VARIETY
