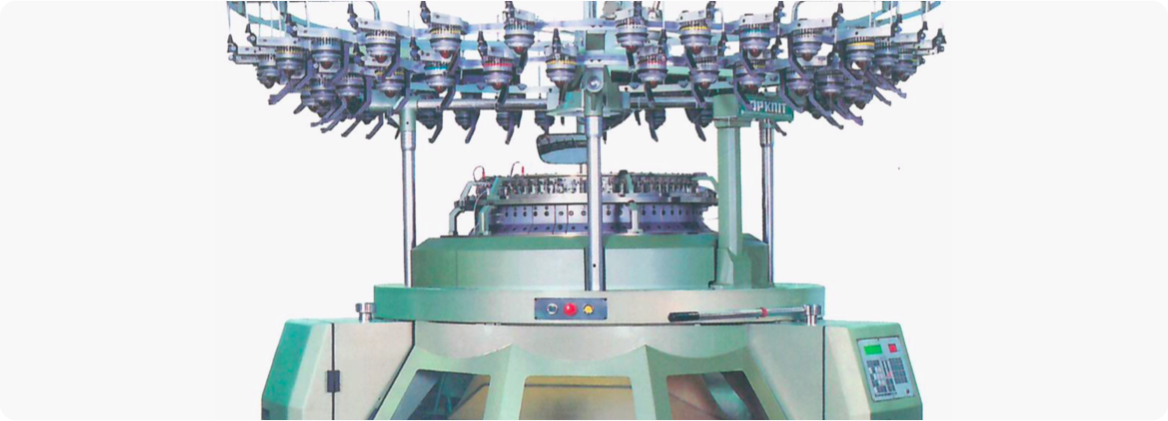

COMPUTERIZED SINGLE-KNIT ELECTRONIC JACQUARD MACHINE

This Model is the latest in electronic technically advanced computerized single knit electronic jacquard machine. The cylinder needle selection system is electronically controlled by specially designed WAC CERAMIC actuator.

KCSJ-72V

DIAMETER	GAUGE(N.P.I)	FEEDS	SPEED(R.P.M)

30"	18-28	72F 60F	18-22
32"	18-28	72F 64F	18-22
34"	18-28	84F 68F	16-20
36"	18-28	84F 72F	14-18

- WAC Ceramic 3 position (welt, tuck, knit) needle selection device

- Yarn feeding device : SFE storage feeding wheel

- Size ring : Spreader System

- Driving : A.C Motor with inverter

STITCHES

• Single plain jersey with jacquard
• Single knit jacquard in 2, 3 and 4 colours with bister tubular jacquard
• Controller : WAC controller
• Pattern save & storage in USB stick

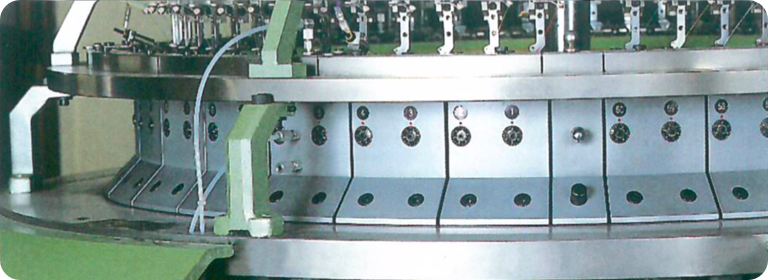

• Patterning device : The electronic needle selection (WAC Actuators)

INTEGRATED CONTROLLER

• Fully integrated driving control mode with characters and graphic
• Self-diagnosis and alarm function
• Auto take-down tension and speed control system
• Easy setting method and bar-graphic digital indicating for all functions

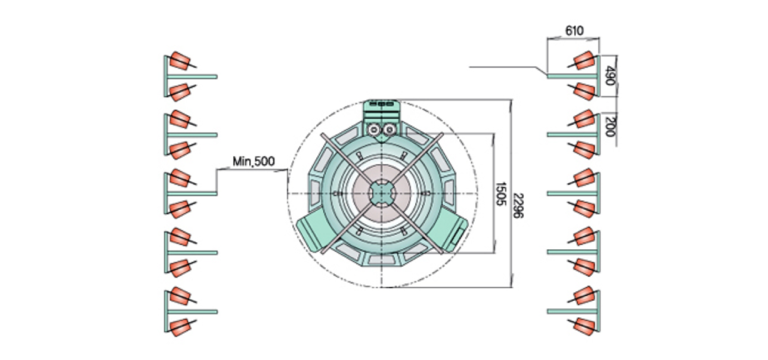

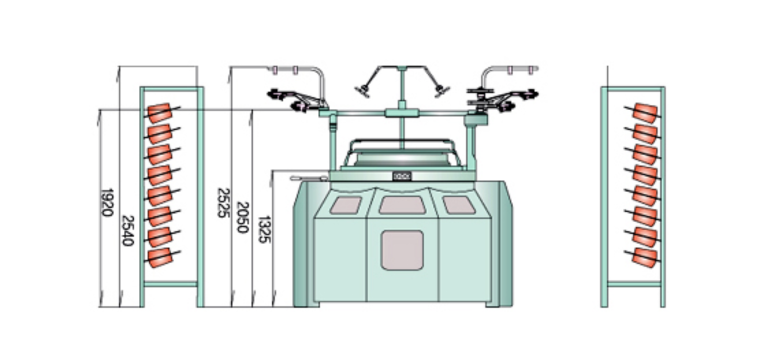

STANDARD DIMENSIONS

PACKING DIMENSIONS

KCSJ-60V, KCSJ-72V	30” Diameter

Approx. Net weight	3,200kg
Approx. Gross weight	3,500kg
Case size (mm)	2,460x2,270x2,250 (Length Width Height)

FABRIC VARIETY
