Computerized Jacquard Machine
KCDJ-IV
ELECTRONIC JACQUARD FOR MATTRESS TICKING MACHINE
This model is the latest fully computerized jacquard and especially developed for mattress cover production in high productivity.
This machine has specially designed yarn carriers, needles and elements for reliable operation.
And this model is controlled by enhanced WAC controller and offers reduction in down time for pattern change as well as unlimited application and infinite prospects for development.
This machine has specially designed yarn carriers, needles and elements for reliable operation.
And this model is controlled by enhanced WAC controller and offers reduction in down time for pattern change as well as unlimited application and infinite prospects for development.
This machine equip very special storage feeding system which can control tension each yarn individually.
KCDJ-IV
| DIAMETER | GAUGE(N.P.I) | FEED | REMARK |
|---|---|---|---|
| 38" | 20F | 60F | Normal Size |
| 42" | 20F | 68F | Special Size |
STANDARD SPECIFICATIONS
- WAC Ceramic 3 position (welt, tuck, knit) needle selection device
- Dial cam : 4 position (welt, tuck, knit and support position) in two race cam system
- Cam timing : Synchronized timing

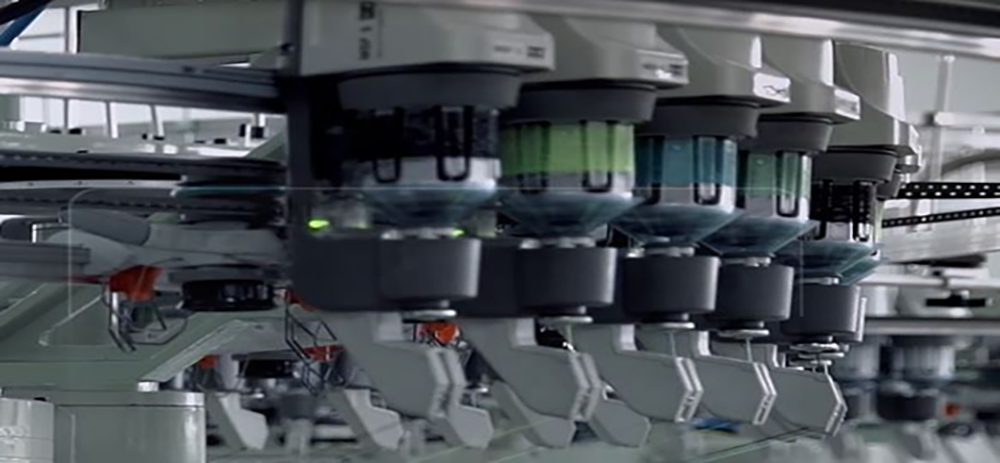

- Yarn feeding device : SET/SFE storage feeding wheel
- Size ring : Spreader System
- Driving : A.C Motor with inverter
OPTIONAL PARTS
- Choice of storage feeding system : LGL, Memminger
- Choice of machine frame : Normal, High leg frame

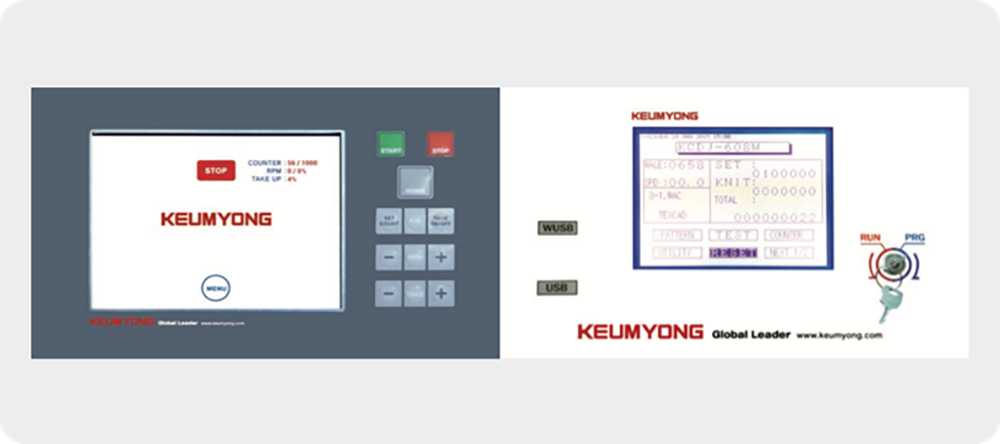

INTEGRATED CONTROLLER
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions
PACKING DIMENSIONS
| KCDJ-IV | 38” Diameter |
|---|---|
| Approx. Net weight | 3,800kg |
| Approx. Gross weight | 4,700kg |
| Case size (mm) | 2,250x2,350x2,550 (Length Width Height) |
FABRIC VARIETY
