Striper Machine
KSST-72
SINGLE JERSEY MULTI-FEEDS AUTO-STRIPER MACHINE

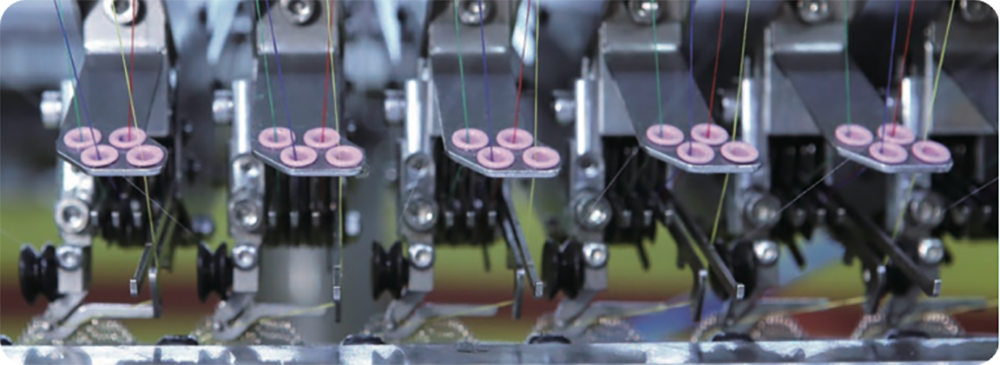

Model has been designed to make striper fabric with 4 colors & Multi feeds by using unique striper system. This striper system has been constructed by simple mechanical structure for easy use and management. The striper patterns are designed by the full computerized pattern design system.
KSST-72
| DIAMETER | GAUGE(N.P.I) | NO. FEEDER | NO. NEEDLE | SPEED(R.P.M) |
|---|---|---|---|---|
| 30” | 16-26G | 72F | 16G1,512 | 20-25 |
| 20G1,896 | ||||
| 24G2,256 | ||||
| 28G2,640 | ||||
| 36” | 16-26G | 84F | 16G1,800 | 16-20 |
| 20G2,256 | ||||
| 24G2,712 | ||||
| 28G3,168 |
| FEEDING DEVICE | Positive Feeding Device |
|---|---|
| DRIVING | 7.5HP AC Motor & Inverter |
| CYLINDER CAM | 4 Track, 3 Position of needle selection (Knit, Tuck & Miss) by changing cams |
STANDARD SPECIFICATION
- Cylinder diameter, needles per inch, number of feeds are as described above, so please order the machine according to requirements
- Cylinder cams for machines with 2 to 4 cam tracks are 3 position select available by changing cams. For single jersey machine ordered with 4 cam tracks in the cylinder, 4 knit cams, 1 tuck and 1 welt cams per feed are supplied with the machine as standard. Others are optional.
- AC Motor with inverter control unit
- Plating fabrics can be knitted by provided yarn carrier and yarn carrier plates are purchased
- Positive yarn feeding device
- Side creel stand with double tie
- Venti-Cleaner
- Spreader size ring system
- Speed of machine depending upon yarn used, kitting condition, gauge etc. The machine speed can be either increased or decreased. So please select the optimum speed for the machine according to the machine condition. The speed figures shown on this table are given only as a reference
OPTIONAL PARTS
- High leg type frame for big roll
- Open width take-up device
- Fabric cutting device

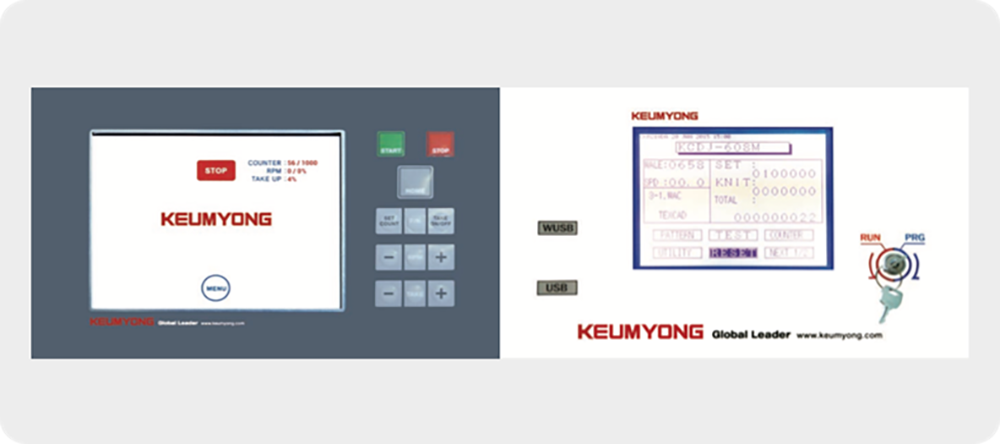

INTEGRATED CONTROLLER
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions

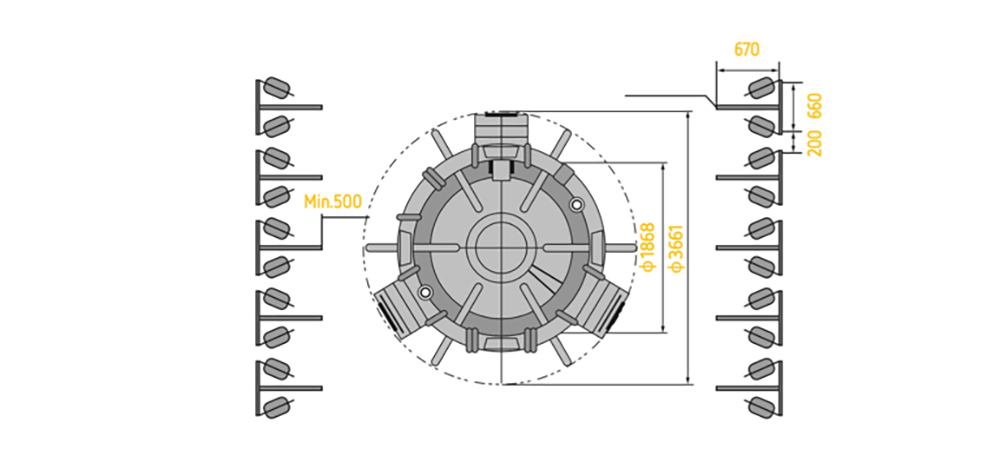

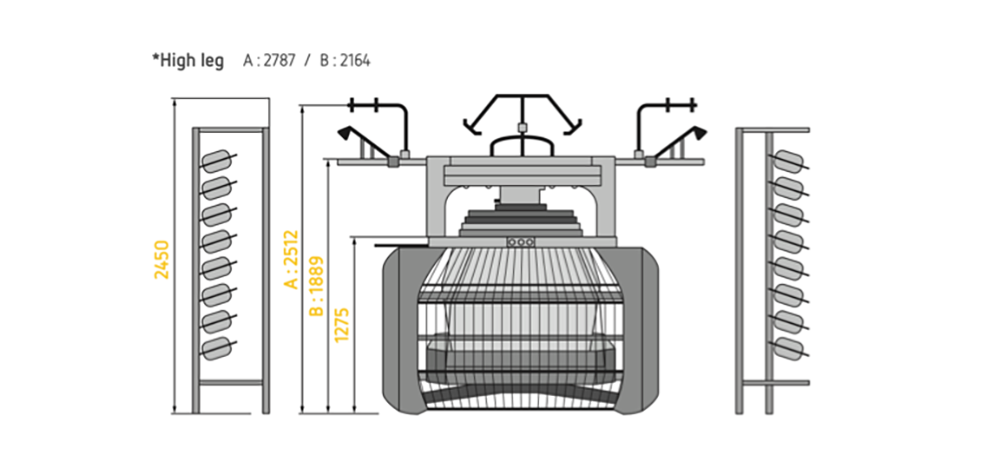

STANDARD DIMENSIONS
PACKING DIMENSIONS
| KSST-48 | 36” Diameter |
|---|---|
| Approx. Net weight | 2,500kg |
| Approx. Gross weight | 3,000kg |
| Case size (mm) | 2,460x2,270x2,250 (Length Width Height) |
FABRIC VARIETY
