Computerized Jacquard Machine
KCDJD-4810M
DOUBLE KNIT DOUBLE SELECTION
ELECTRONIC JACQUARD KNITTING MACHINE
ELECTRONIC JACQUARD KNITTING MACHINE
Double Knit jacquard with fully electronic machine makes new maker and ere in home textile application garment & for the shoe fabric precise and perfect individual needle selection and unlimited pattern designs create quality jacquard and special production in garment and home textile industry.
KCMJD-169S
| DIAMETER | 30" / 34" / 36" / 38" | ||||
|---|---|---|---|---|---|
| GAUGE | 12G to 22G | ||||
| NO. OF FEEDER | 48F / 54F / 56F / 60F | ||||
| NO. OF NEEDLE | Diameter | 12G | 14G | 16G | 18G |
| 30" | 1128 | 1320 | 1215 | 2064 | |
| 34" | 1272 | 1488 | 1704 | 2352 | |
| 36" | 1368 | 1584 | 1800 | 2472 | |
| 38" | 1440 | 1680 | 1896 | 2660 | |
| FEEDING DEVICE | Storage Feeder | ||||
| DRIVING | 7.5HP AC Motor & Inverter | ||||
| COMPUTER CONTROLLER |
WAC Controller, WAC Actuator | ||||
| Cylinder | 3 position needles selection by WAC (Knit, Tuck & Welt) | ||||
| Dial Cam | 2 position needles selection by WAC with support function | ||||
| Structure | Full jacquard with 3 position needle selection in cylinder | ||||
- Needle selection at both cylinder and dial by WAC actuator
- Cylinder 3 position needles selection
- Dial 2 position needles selection
- Unlimited creativity in pattern designs
- Pattern save & storage in USB stick
STANDARD SPECIFICATIONS
- Cylinder diameter, needles per inch, number of feeds as described above, so please order the machine according to requirements
- AC motor with inverter control unit
- Dial and cylinder needle detectors
- Tube side creel with double tie
- Storage yarn feeding device
- Venti-Cleaner
- Spreader size ring system
- Oil mist lubricator for needle and cams with dust blower
- Speed of machine is depending upon yarn used, knitting condition, gauge etc. The machine speed can either increased or decreased
- The speed figures on this table are given only as guide
OPTIONAL PARTS
- KYMS(Keumyong Yarn Measuring System)
- Elastane yarn feeding device
- Pattern design software
- High leg type frame for big roll
- Real time production monitoring system
- Double Roll Take-up device
- Fabric cutting device

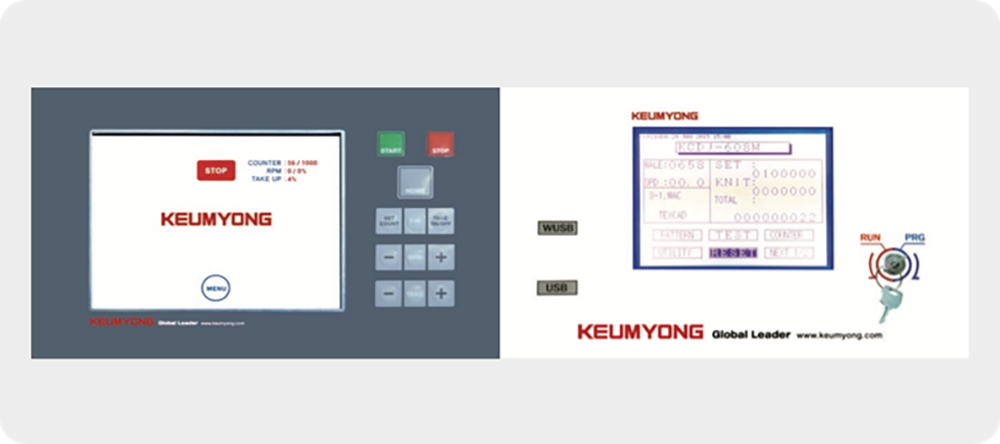

INTEGRATED CONTROLLER
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions

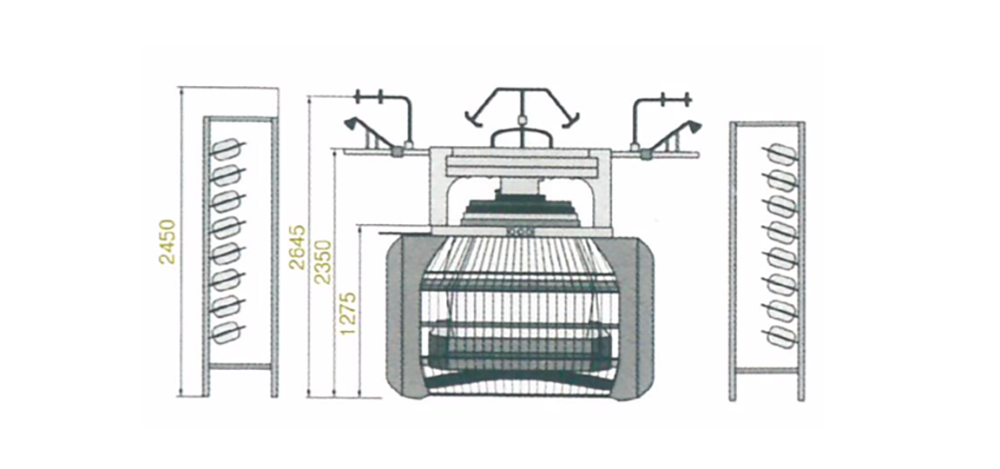

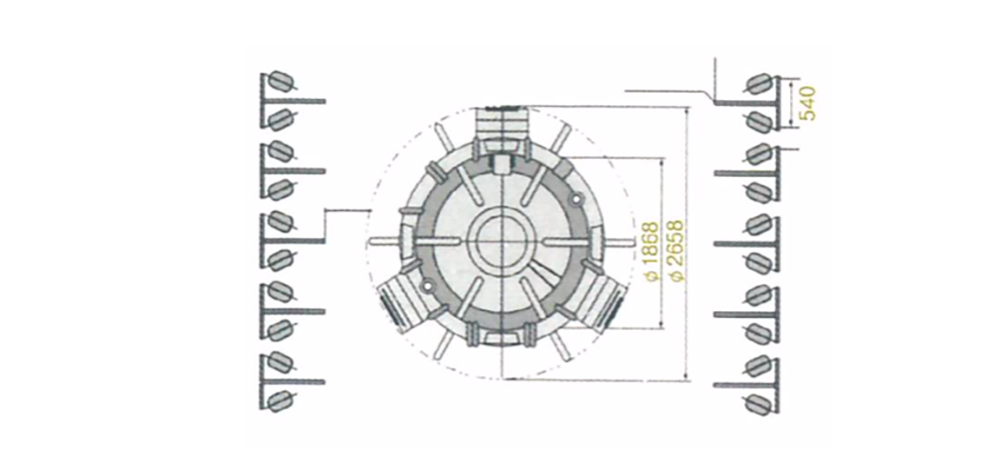

STANDARD DIMENSIONS
PACKING DIMENSIONS
| KCDJ-IV | 30” Diameter |
|---|---|
| Approx. Net weight | 3,000kg |
| Approx. Gross weight | 3,300kg |
| Case size (mm) | 2,390x2,250x2,300 (Length Width Height) |
FABRIC VARIETY
