Computerized Jacquard Machine
KCSJ-72V
COMPUTERIZED SINGLE-KNIT ELECTRONIC JACQUARD MACHINE

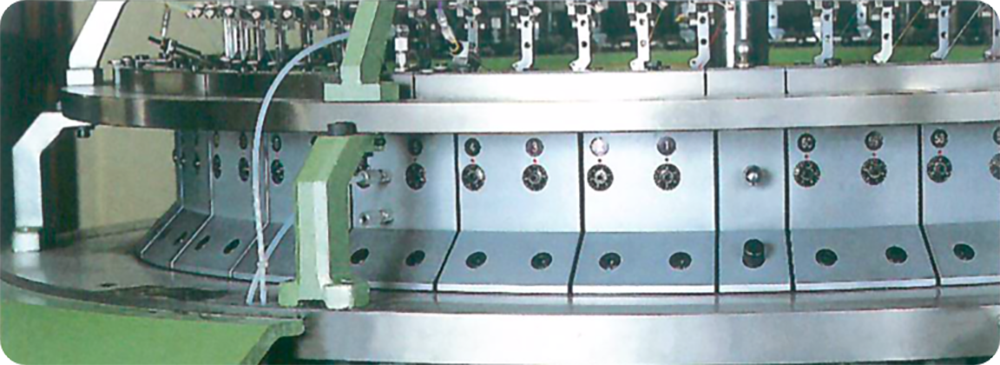

This Model is the latest in electronic technically advanced computerized single knit electronic jacquard machine. The cylinder needle selection system is electronically controlled by specially designed WAC CERAMIC actuator.
KCSJ-72V
| DIAMETER | GAUGE(N.P.I) | FEEDS | SPEED(R.P.M) |
|---|---|---|---|
| 30" | 18-28 | 72F 60F | 18-22 |
| 32" | 18-28 | 72F 64F | 18-22 |
| 34" | 18-28 | 84F 68F | 16-20 |
| 36" | 18-28 | 84F 72F | 14-18 |
- WAC Ceramic 3 position (welt, tuck, knit) needle selection device
- Yarn feeding device : SFE storage feeding wheel
- Size ring : Spreader System
- Driving : A.C Motor with inverter
STANDARD DIMENSIONS
- Single plain jersey with jacquard
- Single knit jacquard in 2, 3 and 4 colours with bister tubular jacquard
- Controller : WAC controller
- Pattern save & storage in USB stick
- Patterning device : The electronic needle selection (WAC Actuators)

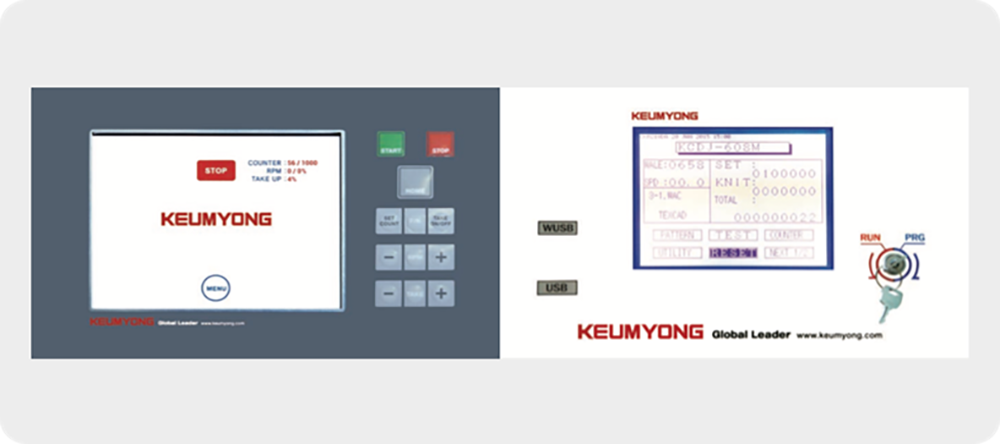

INTEGRATED CONTROLLER
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions

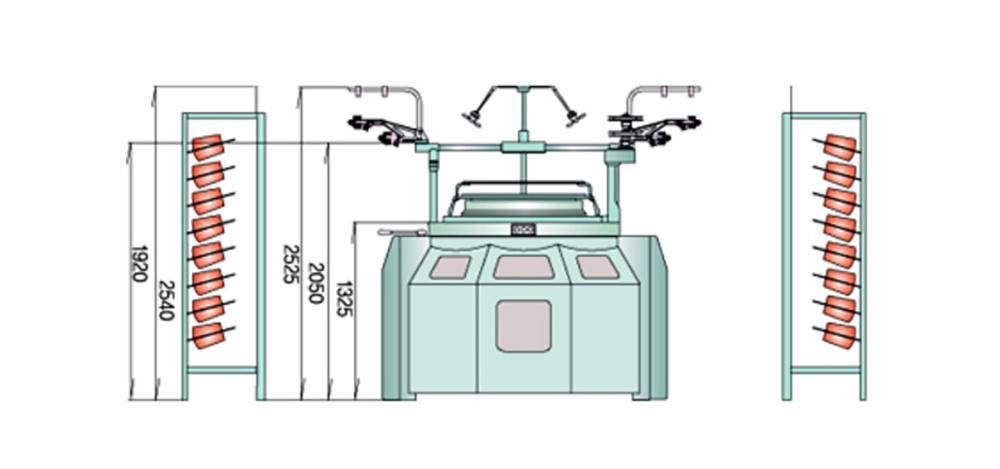

STANDARD DIMENSIONS
STANDARD DIMENSIONS
| KCSJ-60V, KCSJ-72V | 30” Diameter |
|---|---|
| Approx. Net weight | 3,200kg |
| Approx. Gross weight | 3,500kg |
| Case size (mm) | 2,460x2,270x2,250 (Length Width Height) |
FABRIC VARIETY
