Computerized Jacquard Machine
KYPL-CV
COMPUTERIZED PLUSH JACQUARD KNITTING MACHINE
This machine is the latest and newly developed computerized plush jacquard machine with advanced technology. And this provides high quality and fashion fabric for clothes and fabric industry with unlimited pattern and design.
KYPL-CV
| MODEL | DIAMETER | GAUGE(N.P.I) | SPEED(RPM) | PILE LENGTH |
|---|---|---|---|---|
| KYPL-CV/18 | 26” x 16F | 18-22 | 15-18 | 6-14mm |
| 30” x 18F | 18-22 | 13-16 | 6-14mm | |
| 36” x 22F | 18-22 | 11-14 | 6-14mm | |
| KYPL-CV/16 | 26” x 16F | 14-16 | 15-18 | 15-20mm |
| 30” x 18F | 14-16 | 13-16 | 15-20mm | |
| 36” x 22F | 14-16 | 11-14 | 15-20mm |
STANDARD SPECIFICATION
- WAC Computer controller system
- Easy adjustment of pile-length
- Lycra-plating is available
- MPF-positive feeding device
- Venti-cleaner
- Spreader size ring system

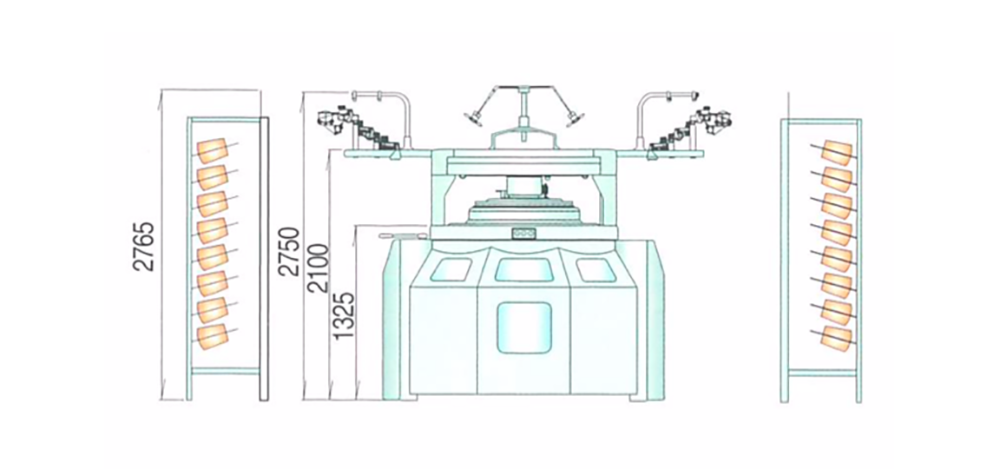

STANDARD DIMENSIONS
PACKING DIMENSIONS
| KYPL-CV | 26” Diameter |
|---|---|
| Approx. Net weight | 2,800kg |
| Approx. Gross weight | 3,100kg |
| Case size (mm) | 2,370x2,250x2,270 (Length Width Height) |
FABRIC VARIETY
