Computerized Jacquard Machine
KCMJD-169S & KCMJD-169ST
DOUBLE KNIT ELECTRONIC FULL JACQUARD WITH RIB-MESH MACHINE
Specially has been designed for making pile-loop knit jacquard fabric by applying a new concept and unique technology. The movement of new type of SINKER, which electronically controlled and selected, provides various and quality pile Jacquard fabrics.
KCMJD-169S
| DIAMETER | 30" / 34" | ||||
|---|---|---|---|---|---|
| GAUGE | 12G to 18G | ||||
| NO. OF FEEDER | 16 Knit Feeds + Cylinder 8Transfer feeds + Dial 4Transfer feeds 18 Knit Feeds + 9Transfer feeds |
||||
| NO. OF NEEDLE (CUT) | Diameter | 12G | 14G | 16G | 18G |
| 30" | 1128 | 1320 | 1512 | 1680 | |
| 34" | 1272 | 1440 | 1704 | 1920 | |
| FEEDING DEVICE | Storage Feeder | ||||
| DRIVING | 7.5HP AC Motor & Inverter | ||||
| LUBRICATOR | Pulsonic | ||||
| COMPUTER CONTROLLER |
WAC Controller, WAC Actuator | ||||
| CYLINDER | 3 position needles selection by WAC (Knit, Tuck & Welt) | ||||
| DIAL CAM | 2 position needles selection by WAC with support function | ||||
| STRUCTURE | - Full jacquard with 3 position needle selection in cylinder. - Rib transfer jacquard |
||||
- Needle selection at both cylinder and dial by WAC actuator
- Cylinder 3 position needles selection
- Dial 2 position needles selection
- Rib-mesh transfer jacquard
STANDARD SPECIFICATIONS
- Cylinder diameter, needles per inch, number of feeds as described above, so please order the machine according to requirements
- AC motor with inverter control unit
| Cylinder Diameter | 12” - 28" | 30” - 38" |
|---|---|---|
| AC Motor | 5HP | 7.5HP |
- Dial and cylinder needle detectors
- Tube side creel with double tie
- Storage and Positive yarn feeding device
- Venti-Cleaner
- Spreader size ring system
- Oil mist lubricator for needle and cams with dust blower
- Speed of machine is depending upon yarn used, knitting condition, gauge etc. The machine speed can either increased or decreased
- The speed figures on this table are given only as guide
OPTIONAL PARTS
- KYMS(Keumyong Yarn Measuring System)
- Elastane yarn feeding device
- Pattern design software
- High leg type frame for big roll
- Real time production monitoring system
- Double Roll Take-up device
- Fabric cutting device
INTEGRATED CONTROLLER
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions

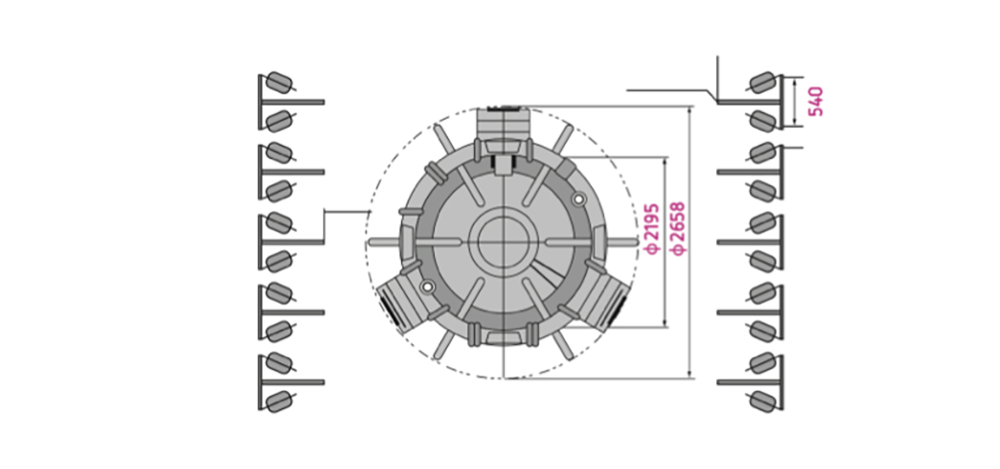

STANDARD DIMENSIONS
PACKING DIMENSIONS
| KCDJ-IV | 30” Diameter |
|---|---|
| Approx. Net weight | 3,000kg |
| Approx. Gross weight | 3,300kg |
| Case size (mm) | 2,390x2,250x2,300 (Length Width Height) |
