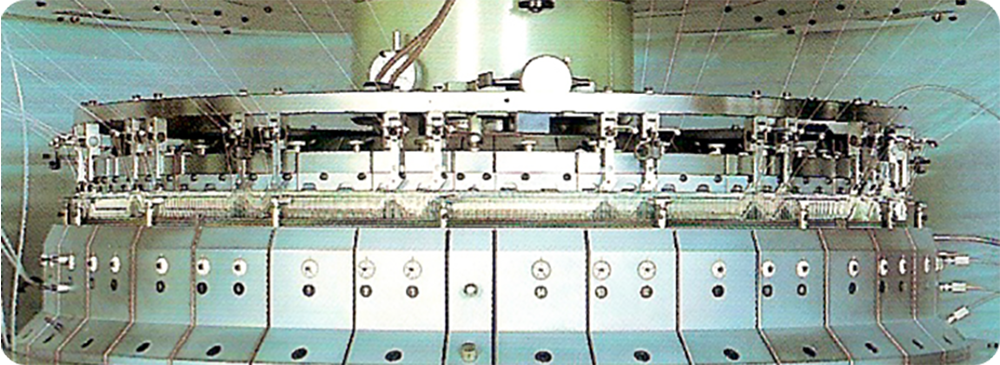

Computerized Jacquard Machine
KCMJ-III RL
COMPUTERIZED RIB-MESH ELECTRONIC JACQUARD MACHINE
This Model is up to date and universal in every respect and which will produce many kinds of fabric, up to and including electronic Jacquard transfer patterns. Mesh Jacquard patterns in the basic rib fabric create attractive, high quality knitted fabrics which create.
KCMJ-III RL
| DIAMETER | GAUGE(N.P.I) | FEEDS | SPEED(R.P.M) | NO OF BOBBIN |
|---|---|---|---|---|
| 13" | 12-18 | 10F | 42 | 20 |
| 14" | 12-18 | 12F | 40 | 24 |
| 15" | 12-18 | 12F | 38 | 24 |
| 16" | 12-18 | 14F | 35 | 28 |
| 17" | 12-18 | 14F | 32 | 28 |
| 18" | 12-18 | 16F | 30 | 32 |
| 30" | 12-18 | 30F | 20 | 60 |
| 33" | 12-18 | 32F | 18 | 64 |
- One knitting consists of two knitting feeders and one transfer feeder
- Pattern area : 1024(w) x 512(c)
- Actuator : 8 Steps ceramic system

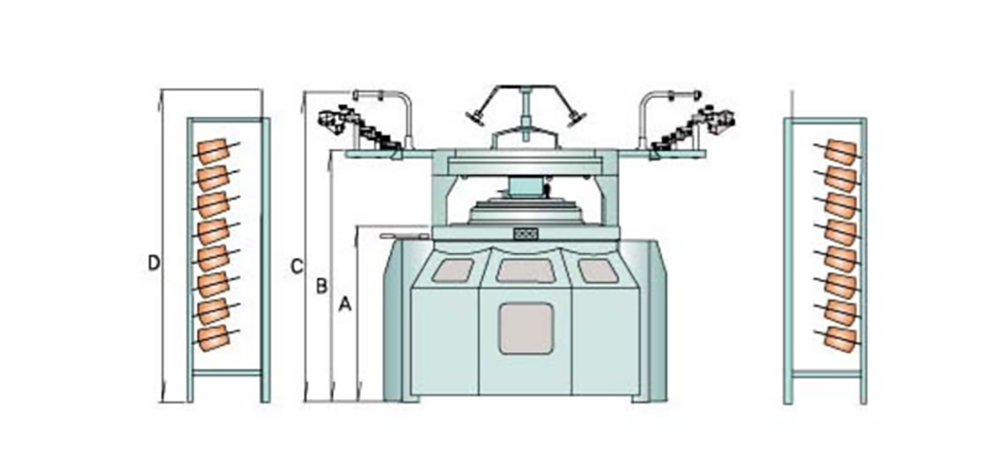

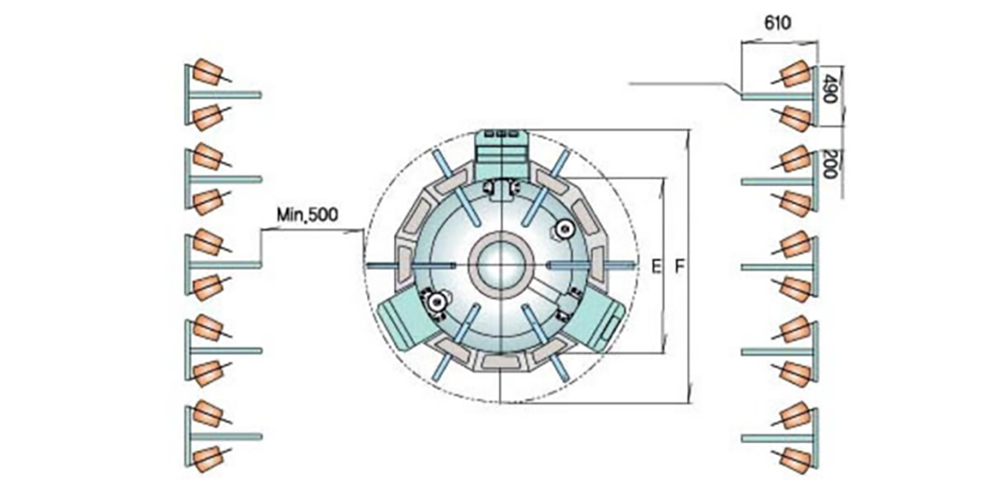

STANDARD DIMENSIONS
| Computerized Machine | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 26-29” | 1325 | 2091 | 2525 | 2540 | 1409 | 2200 |
| 30-33” | 1325 | 2091 | 2525 | 2540 | 1505 | 2296 |
| 34-37” | 1325 | 2091 | 2525 | 2540 | 1619 | 2410 |
| 38-41” | 1325 | 2091 | 2525 | 2540 | 1709 | 2500 |
FABRIC VARIETY
