Computerized Jacquard Machine
KCPJ-III 3A2T
COMPUTERIZED PILE-LOOP KNIT
ELECTRONIC JACQUARD MACHINE
ELECTRONIC JACQUARD MACHINE
Specially has been designed for making pile-loop knit jacquard fabric by applying a new concept and unique technology. The movement of new type of SINKER, which electronically controlled and selected, provides various and quality pile Jacquard fabrics.
This machine is equipped very special storage feeding system which can control tension each yarn individually.
KCPJ-III / 3A, 2A
| DIAMETER | GAUGE(N.P.I) | NO. FEEDER | NO. NEEDLE | SPEED(R.P.M) |
|---|---|---|---|---|
| 26" | 16-24G | 40F | 161,296 | 20-25 |
| 181,464 | ||||
| 201,632 | ||||
| 221,800 | ||||
| 241,968 | ||||
| 30" | 16-24G | 48F | 161,512 | 18-20 |
| 181,704 | ||||
| 201,896 | ||||
| 222,064 | ||||
| 242,256 | ||||
| 32" | 16-24G | 50F | 161,608 | 16-18 |
| 181,800 | ||||
| 202,016 | ||||
| 222,208 | ||||
| 242,400 | ||||
| 34" | 16-24G | 54F | 161,704 | 16-18 |
| 181,920 | ||||
| 202,136 | ||||
| 222,352 | ||||
| 242,568 | ||||
| 36" | 16-24G | 40F | 161,800 | 14-16 |
| 182,040 | ||||
| 202,256 | ||||
| 222,496 | ||||
| 242,712 |
| FEEDING DEVICE | Ground : Positive Feeder Pile : Storage Feeder |
|---|---|
| DRIVING | 7.5HP AC Motor & Inverter |
| COMPUTER CONTROLLER | WAC Controller, WAC Actuator |
- Sinker selection at cylinder by selector
- Unlimited creativity in pattern designs
- Pattern save & storage in USB stick
- Note : Speed depends on fabric structure and yarn material
STANDARD SPECIFICATIONS

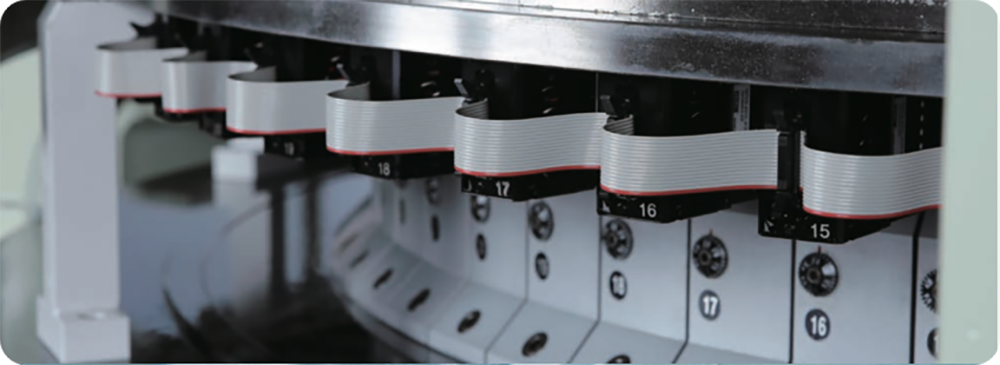

- Electronic selection device for sinker pin
- Motorized fabric take-down system
- Storage yarn feeding device(SFE)
- Positive feeding device
- Pile-loop Length can be adjustable
- Ground, low pile and high pile can be knitted simultaneously (3-color pattern is available) (1.8mm, 2.1mm, 2.4mm, 2.9mm, 3.2mm, 3.5mm, 1.6-3.3mm, 2.0-3.7mm : Optional Sinker Change)
OPTIONAL PARTS
- Parts for 3 pile(Cam, yarn carrier, gear, etc.)

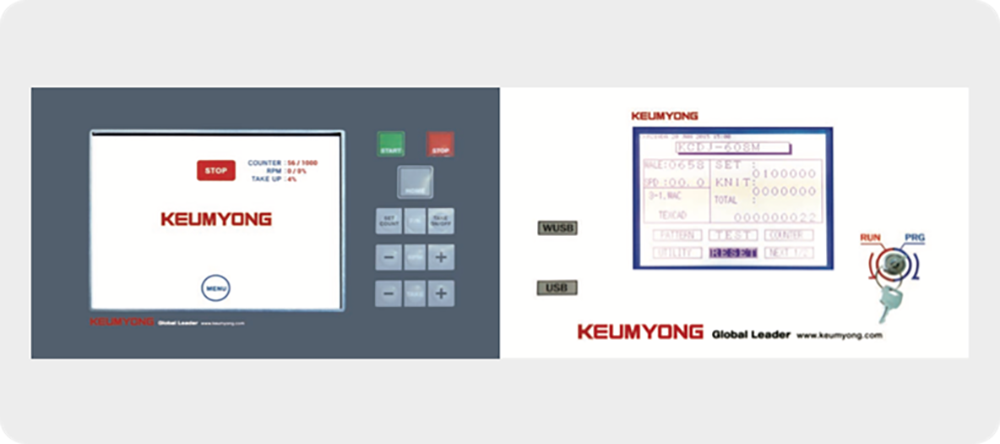

INTEGRATED CONTROLLER
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions

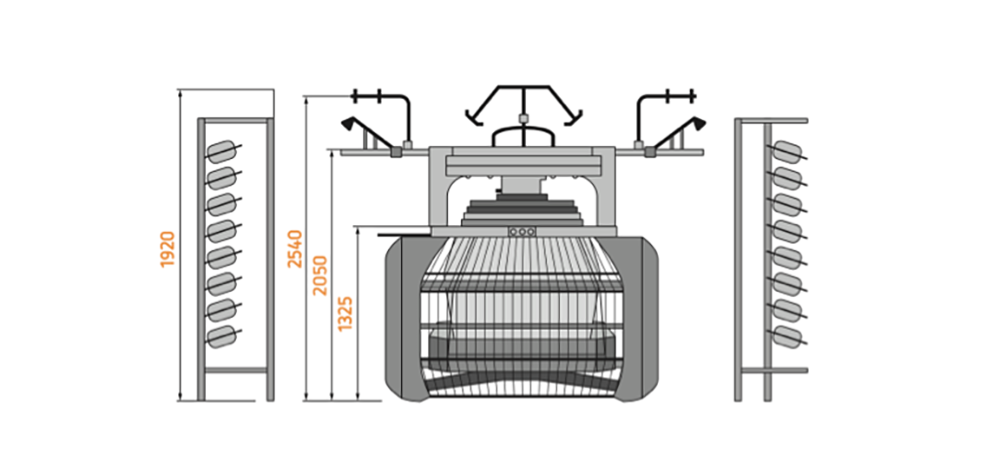

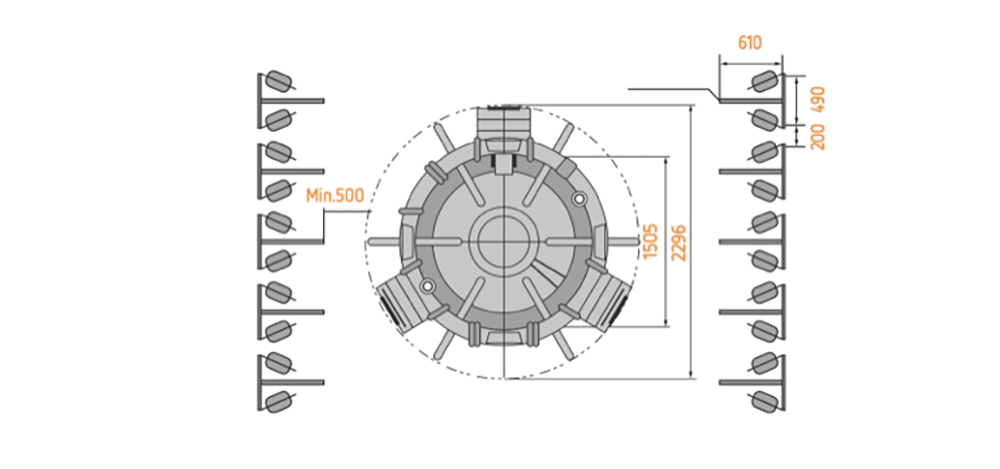

STANDARD DIMENSIONS
PACKING DIMENSIONS
| KCPJ-III / 3A, 2A | 30” Diameter |
|---|---|
| Approx. Net weight | 2,300kg |
| Approx. Gross weight | 2,700kg |
| Case size (mm) | 2,440x2,270x2,250 (Length Width Height) |
FABRIC VARIETY
