Single Machine
KM-3WE
High Speed single jersey machine for energy & Cost saving
The model is the most productive single jersey machines incorporating computer designed solid type closed camming giving positive needle control to ensure perfect stitch definition and high quality single jersey fabrics at super high production and efficiency rates with minimum operative maintenance costs.
KM-3WE
| DIAMETER | GAUGE(N.P.I) | FEEDS | SPEED(R.P.M) |
|---|---|---|---|
| 30" | 28-32 | 90F | 25-30 |
| 32" | 28-32 | 96F | 24-28 |
| 36" | 28-32 | 108F | 23-27 |
| 38" | 28-32 | 114F | 20-22 |
| 40" | 28-32 | 120F | 17-20 |
STANDARD SPECIFICATIONS
- Cylinder diameter, needles per inch, number of feeds are briefly described as above, but our production range is covering almost specifications for circular knitting machine. So please order the machine according to your requirements.
- Cylinder of this model has 2 cam tracks
- AC Motor with inverter control unit
- Plating fabrics can be knitted by provided yarn carrier and yarn carrier plates are purchased
- Positive yarn feeding device
- Side creel stand with double tie
- Venti-Cleaner
- Spreader size ring system
- Speed of machine depending upon yarn used, kitting condition, gauge etc. the machine Speed can be either increased or decreased. So please select the optimum speed for the machine according to the machine condition. The speed figures shown on this table are given only as a reference

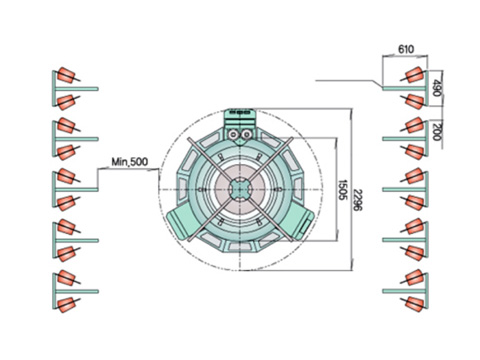

STANDARD DIMENSIONS
PACKING DIMENSIONS
| KM-3WE | 30” Diameter (High leg frame) |
|---|---|
| Approx. Net weight | 3,800kg |
| Approx. Gross weight | 4,700kg |
| Case size (mm) | 2,250x2,350x2,550 (Length Width Height) |
FABRIC VARIETY
