Single Machine
KM-WVX
SINGLE JERSEY WITH OPEN WIDTH TAKE-UP DEVICE
Are the most productive single jersey machines incorporating computer designed solid type closed camming giving positive needles control to ensure perfect stitch definition and high quality single jersey fabrics at super high production and efficiency rates with minimum operative maintenance costs.
KM-3WV X / 3.2WV X
Available in 3 feeds/3.2 feeds per diametrical inch with 2 to 4 cam tracks in the cylinder from 20”DIA To 48” DIA. In 20 gauge to 32 gauge.
| Diameter | Gauge(N.P.I) | No. Feeder | No. needle | Speed(R.P.M) |
|---|---|---|---|---|
| 30" | 14-24G / 16-36G / 38G-50G |
90F96F | 20G1,896 | 35-38 |
| 24G2,256 | ||||
| 28G2,640 | ||||
| 32" | 14-24G / 16-36G / 38G-50G |
96F102F | 20G2,016 | 32-35 |
| 24G2,400 | ||||
| 28G2,808 | ||||
| 34" | 14-24G / 16-36G / 38G-50G |
102F108F | 20G2,136 | 30-33 |
| 24G2,568 | ||||
| 28G3,000 | ||||
| 36" | 14-24G / 16-36G / 38G-50G |
108F116F | 20G2,256 | 27-30 |
| 24G2,712 | ||||
| 28G3,168 |
- CYLINDER CAMS
- 3 Position of needle selection (Knit, Tuck & Miss) by changing cams
- STRUCTURE
- 3 feeders / 3.2 feeders per diametrical inch
KM-4WV X
AVAILABLE IN 4 FEEDS PER DIAMETRICAL INCH WITH 2 TO 4 CAM TRACKS IN THE CYLINDER FROM 20”DIA TO 48”DIA. IN 20GAUGE TO 32GAUGE.
| Diameter | Gauge(N.P.I) | No. Feeder | No. needle | Speed(R.P.M) |
|---|---|---|---|---|
| 30" | 14-24G / 16-36G / 38G-50G |
90F96F | 20G1,896 | 35-38 |
| 24G2,256 | ||||
| 28G2,640 | ||||
| 32" | 14-24G / 16-36G / 38G-50G |
96F 102F | 20G2,016 | 32-35 |
| 24G2,400 | ||||
| 28G2,808 | ||||
| 34" | 14-24G / 16-36G / 38G-50G |
102F108F | 20G2,136 | 30-33 |
| 24G2,568 | ||||
| 28G3,000 | ||||
| 36" | 14-24G / 16-36G / 38G-50G |
108F116F | 20G2,256 | 27-30 |
| 24G2,712 | ||||
| 28G3,168 |
- CYLINDER CAMS
- 3 Position of needle selection (Knit, Tuck & Miss) by changing cams
- STRUCTURE
- 4 feeders per diametrical inch
FABRIC POTENTIAL
Fine quality at high production rates with single jersey high speed machines in the highest quality fabric such as lacoste, crepe.
STANDARD SPECIFICATION
- Cylinder diameter, needles per inch, number of feeds are briefly described as above, but our production range is covering almost specifications for circular knitting machine. So please order the machine according to your requirements
- Cylinder cams for machines with 2 to 4 cam tracks are 3 position select available by changing cams. For single jersey machine ordered with 4 cam tracks in the cylinder, 4 knit cams, 1 tuck and 1 welt cams per feed are supplied with the machine as standard. Others are optional.
- AC Motor with inverter control unit
- Plating fabrics can be knitted by provided yarn carrier and yarn carrier plates are purchased
- Positive yarn feeding device
- Side creel stand with double tie
- Venti-Cleaner
- Spreader size ring system
- Speed of machine depending upon yarn used, knitting condition, gauge etc. the machine Speed can be either increased or decreased. So please select the optimum speed for the machine according to the machine condition. The speed figures shown on this table are given only as a reference
OPTIONAL PARTS
- KYMS(Keumyong Yarn Measuring System)
- High leg type frame for big roll
- Real time production monitoring system
- Open width take-up device
- Fabric cutting device
INTEGRATED CONTROLLER
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions

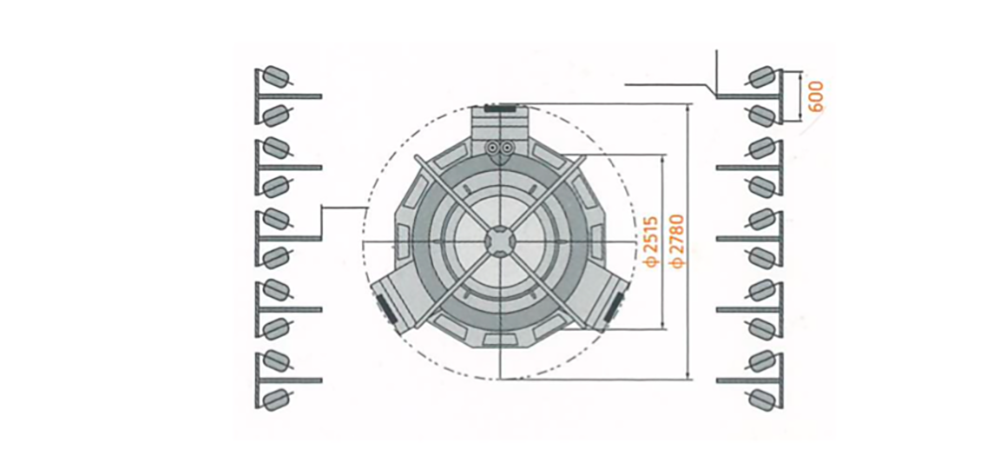

STANDARD DIMENSIONS
PACKING DIMENSIONS
| KM-WVX | 30” Diameter | 34” Diameter |
|---|---|---|
| Approx. Net weight | 2,800kg | 3,000kg |
| Approx. Gross weight | 3,300kg | 3,500kg |
| Case size (mm) | 3,400x2,270x2,250 (Length Width Height) |
3,400x2,270x2,250 (Length Width Height) |
FABRIC VARIETY
