KSBP-TV

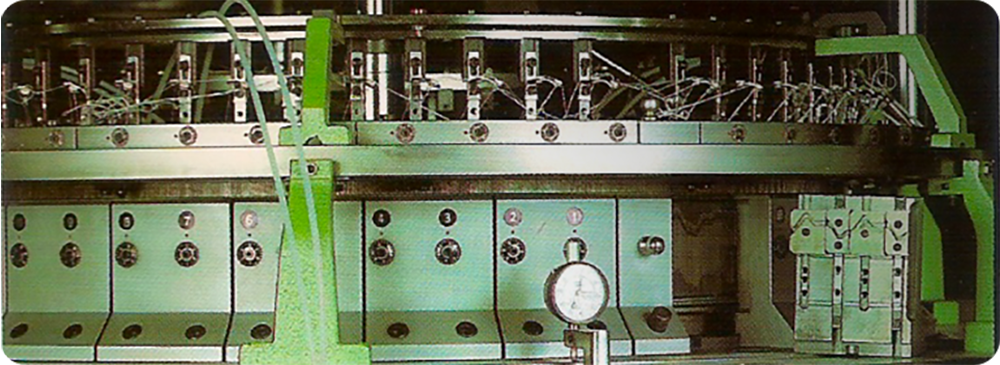

Plain Loop Pile Knitting Machine (Terry)
Has been developed for knitting the finest quality plain loop fabrics at high speed and produce excellent definition and fabric texture for all filament and spun yarns
KSBP-TV
| Diameter | Gauge(N.P.I) | Feeds | Speed(R.P.M) | No of Bobbin |
|---|---|---|---|---|
| 26" | 16-28G | 52F | 20-22 | 104 ends |
| 30" | 16-28G | 60F | 18-20 | 120 ends |
- Ex. 26” Dia, 24 Gauge, 52 Feeds, 20 rpm
- Ground yarn : Polyester 100D
- Pile yarn : Cotton 30’s Capacity : 30m/h
STANDARD SPECIFICATIONS
| Model | KSBP-TV |
|---|---|
| Sinker Heights | 2.2mm1.0mm |
| 2.5mm1.5mm | |
| 3.0mm2.0mm | |
| 3.3mm2.5mm |
- Cylinder diameter, needles per inch, number of feeds are briefly described as above, but our production range is covering almost specifications for circular knitting machine. So please order the machine according to your requirements
- AC Motor with inverter control unit
- Plating fabrics can be knitted, provided yarn carrier and yarn carrier plates are purchased
- Memminger MPF positive yarn feeding device
- Side creel stand with double tie
- Spreader size ring system
- Speed of machine depending upon yarn used, kitting condition, gauge etc. the machine Speed can be either increased or decreased. So please select the optimum speed for the machine according to the machine condition. The speed figures shown on this table are given only as a reference
STANDARD DIMENSIONS
PACKING DIMENSIONS
| KSBP-TV | 30” Diameter |
|---|---|
| Approx. Net weight | 1,800kg |
| Approx. Gross weight | 2,100kg |
| Case size (mm) | 2,280x2,250x2,150 (Length Width Height) |
FABRIC VARIETY
