Single Machine
KSMJ-72V
Single Knit Mini-Jacquard Knitting Machine
Model is the latest 3-position technology for advanced single knit mini-jacquard machine. Patterns are adjusted by manual selector. Fast, Simple unlimited 3-position(knit, tuck, welt) technique to produce any pattern.
KSMJ-72V
| MODEL | Gauge(N.P.I) | Feeds | Speed(R.P.M) | |||
|---|---|---|---|---|---|---|
| 20 | 22 | 24 | 28 | |||
| 26" | 1620 | 1800 | 1944 | 2268 | 62F | 22-27 |
| 30" | 1972 | 2052 | 2268 | 2628 | 72F | 20-25 |
| 34" | 2160 | 2376 | 2592 | 2952 | 84F | 18-22 |
- Speed is depending on fabric structure and yarn material
STANDARD SPECIFICATIONS

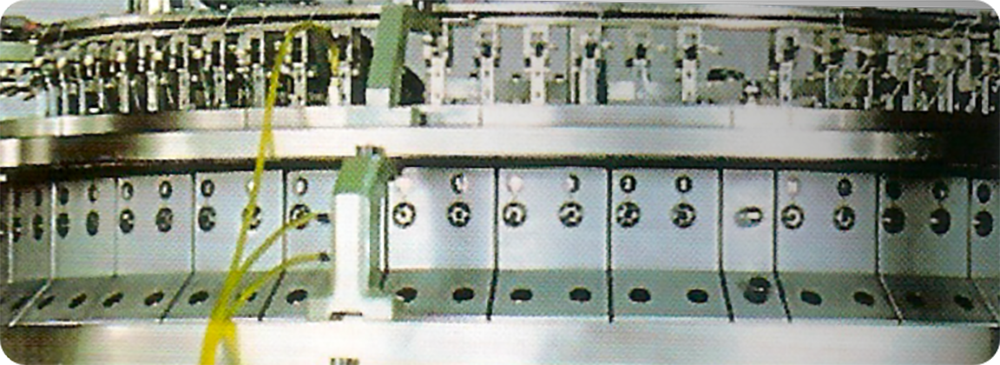

- The cylinder needle has 3 position selection by 37 steps selector with semi closed cam system
- Every cylinder needle can be moved to the miss, knit, tuck position
Pattern Area
| 2 color jacquard | 3 color jacquard |
|---|---|
| 36 course x 36 wales | 24 course x 36 wales |
| 36 course x 72 wales (mirror) | 24 course x 36 wales (mirror) |
Fabric Potential
- Single jersey plain, tuck patterns, inlay patterns, 2 and 3 color pattern
- Mirror or diagonal repeat jack set out

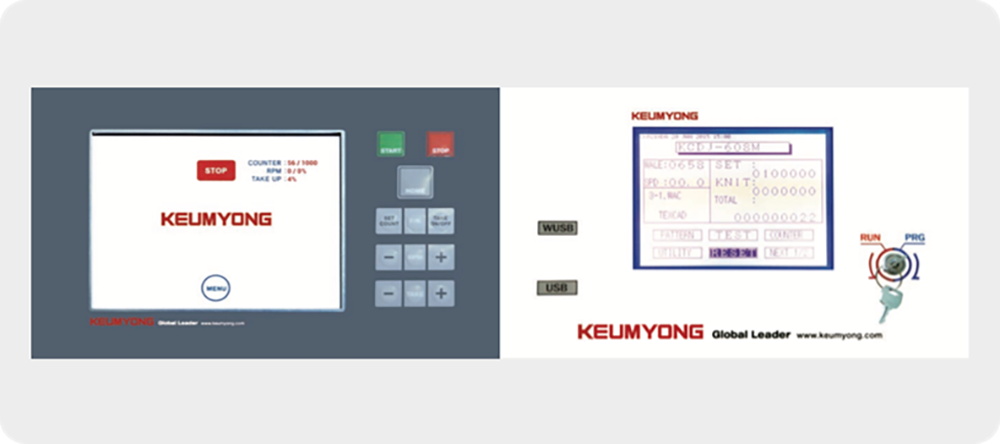

INTEGRATED CONTROLLER
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions
STANDARD DIMENSIONS
PACKING DIMENSIONS
| KSMJ-72V | 30” Diameter |
|---|---|
| Approx. Net weight | 2,400kg |
| Approx. Gross weight | 2,900kg |
| Case size (mm) | 2,440x2,250x2,250 (Length Width Height) |
FABRIC VARIETY
