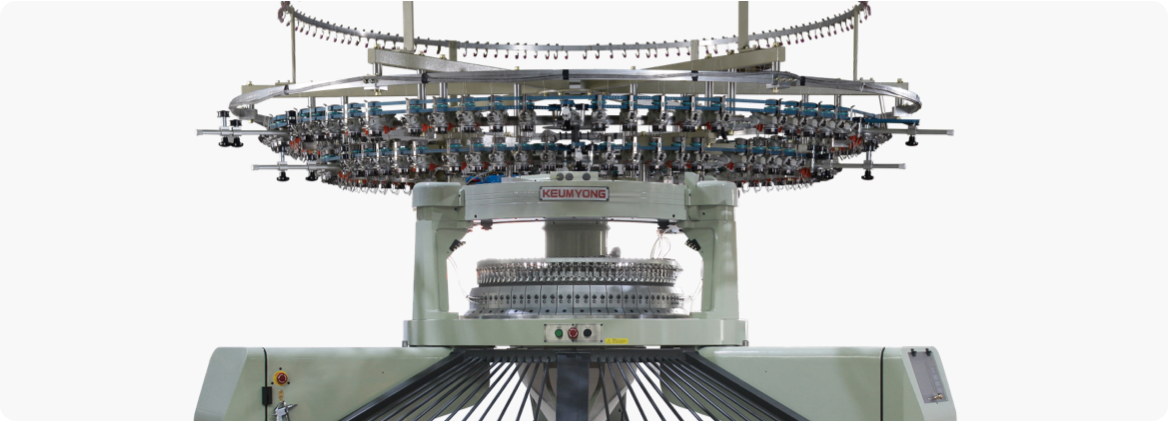

Double Knit INTERLOCK Machine with Open Width Take-up Device

High speed multi-purpose double knit machine with open width take-up frame and a wide range of stitch for a top quality finishing and knitting. All of these furnish high production and easy pattern changing and high production multi-purpose in rib or interlock knitting machine.

KILM-AV X

DIAMETER	GAUGE(N.P.I)	FEEDS	SPEED(R.P.M)

30"	18-32	72F84F	28-32
34"	18-32	72F84F	25-28

STANDARD SPECIFICATION

• Cylinder diameter, needles per inch, number of feeds are briefly described as above, but our production range is covering almost specifications for circular knitting machine. So please order the machine according to your requirements
• AC motor with inverter control unit.

Cylinder Diameter	12” - 28"	30” - 38"
AC Motor	5HP	7.5HP

• Dial and cylinder needle detectors
• Tube side creel with double tie
• Positive yarn feeding device
• Venti-Cleaner
• Oil mist lubricator for needle and cams with dust blower
• Spreader size ring system
• Speed of machine is depending on yarn used, knitting condition, gauge etc
• The machine speed is adjustable by Inverter
• The speed figures on this table are given only as guide
• Optional equipment : conversion kit for tubular form knitting

INTEGRATED CONTROLLER

• Fully integrated driving control mode with characters and graphic
• Self-diagnosis and alarm function
• Auto take-down tension and speed control system
• Easy setting method and bar-graphic digital indicating for all functions

STANDARD DIMENSIONS

OPEN WIDTH TAKE-UP

PACKING DIMENSIONS

KILM-84AV X	30” Diameter

Approx. Net weight	3,300kg
Approx. Gross weight	3,800kg
Case size (mm)	3,500x2,300x2,300 (Length Width Height)

FABRIC VARIETY

• KILM-72AV / 84AV X

  Double pique, Interlock, Eightlock, Swiss pique, French pique, Milano Rib, Ponte di roma, Lacoste and Flat back rib

• KILM-V Series (Interlock machine)
