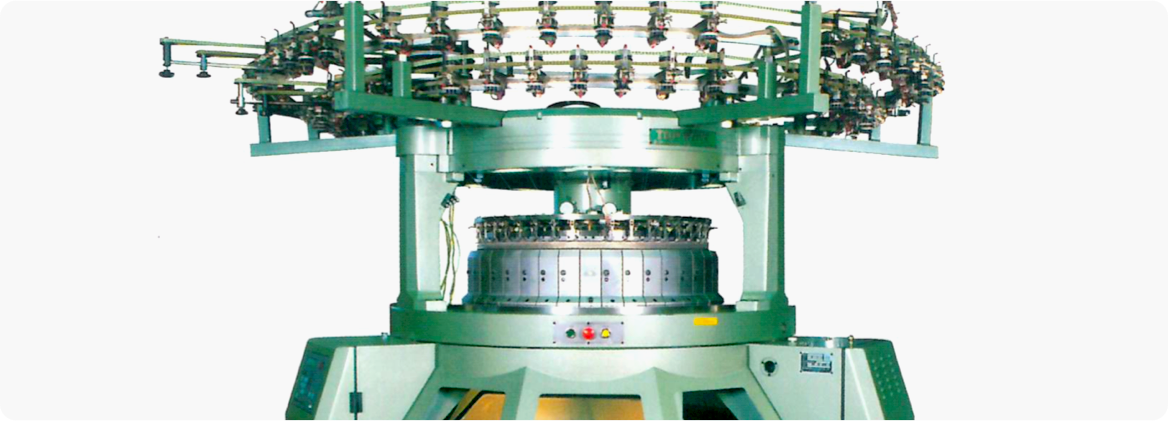

Inter-rib with coarse gauge circular knitting machine

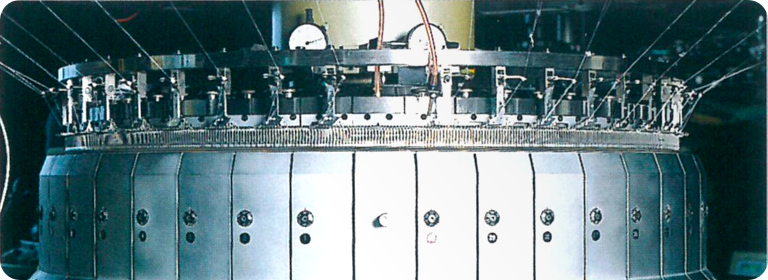

This model’s cam system has been manufactured with completely closed cam system in such way to allow high operational speed, with the best stitch formation and high quality rib fabric which is utilized for the outerwear garments production.

KRB-4TV

DIAMETER	GAUGE(N.P.I)	FEEDS	SPEED(R.P.M)

30"	7-12G	36F	25-30
32"	7-12G	40F	23-27
30"	7-12G	42F	20-22

STANDARD Specification

• Cylinder diameter, needles per inch, number of feeds are as described above, so please order the machine according to requirements
• AC Motor with inverter control unit
• Dial and cylinder needle detectors
• Positive yarn feeding device
• Tube side creel with double tie
• Oil mist lubricator for needles and cams with dust blower
• Spreader size ring system
• Speed of machine depending upon yarn used, kitting condition, gauge etc. the machine Speed can be either increased or decreased. So please select the optimum speed for the machine according to the machine condition. The speed figures shown on this table are given only as a reference

OPTIONAL PARTS

• Additional cams when increasing cam in the cylinder and dial for fabric potential
• Plating fabrics can be knitted provided yarn carrier
• Knitting Lycra yarns in plating construction by using memminger MER system

INTEGRATED CONTROLLER

• Fully integrated driving control mode with characters and graphic
• Self-diagnosis and alarm function
• Auto take-down tension and speed control system
• Easy setting method and bar-graphic digital indicating for all functions

STANDARD DIMENSIONS

PACKING DIMENSIONS

KRB-4TV	30” Diameter

Approx. Net weight	2,800kg
Approx. Gross weight	3,000kg
Case size (mm)	2,390x2,250x2,300 (Length Width Height)

Fabric Potential
