DOUBLE MACHINE
KYPL-V

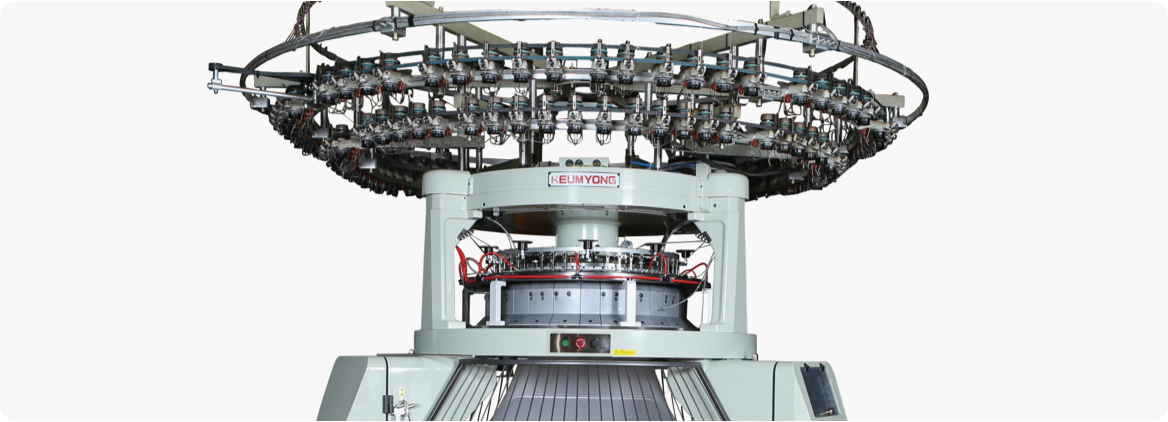

High Speed Plush Knitting Machine
This plush machine is newly developed to produce high quality pile fabric with sinker mounted in dial on double base frame and to provide easy pile-height adjustment, high speed operation top efficiency and minimum maintenance.
KYPL-16V
For long pile knitting
| DIAMETER | GAUGE(N.P.I) | FEEDS | SPEED(R.P.M) | SINKER |
|---|
| 26" | 14-26G | 14F | 18-23 | 16-25mm |
| 30" | 14-26G | 16F | 15-20 | 16-25mm |
KYPL-18V
For mid-length pile knitting
Most preferred plush knitting machine
Most preferred plush knitting machine
| DIAMETER | GAUGE(N.P.I) | FEEDS | SPEED(R.P.M) | SINKER |
|---|
| 26" | 20-28G | 16F | 24-26 | 6-15mm |
| 30" | 20-28G | 18F | 22-24 | 6-15mm |
| 32" | 20-28G | 20F | 20-22 | 6-15mm |
| 36" | 20-28G | 22F | 18-20 | 6-15mm |
KYPL-20V
For high gauge & short pile knitting
| DIAMETER | GAUGE(N.P.I) | FEEDS | SPEED(R.P.M) | SINKER |
|---|
| 30" | 30-32G | 20F | 28-32 | 3-6mm |
APPLICATION AREA
BLANKET, T-SHIRT, STUFFED TOY, BATHROBE, CLEANER
STANDARD SPECIFICATION
- In combination with cylinder, sinker-dial
- 4 track cylinder cam for versatility of ground structure
- Easy adjustment of pile-length
- AC Motor with inverter control unit
- Lycra-plating is available
- MPF-positive feeding device
- Venti-cleaner
- Spreader size ring system
- Cylinder & dial with sinker frame
- Urethane coated fabric guide(16V, 18V)
- Various lengths of pile change by easy adjustment
OPTIONAL PARTS
- Real time production monitoring system
- KYMS(Keumyong Yarn Measuring System)
- Open width take-up device
- High leg type frame for big roll
INTEGRATED CONTROLLER
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions

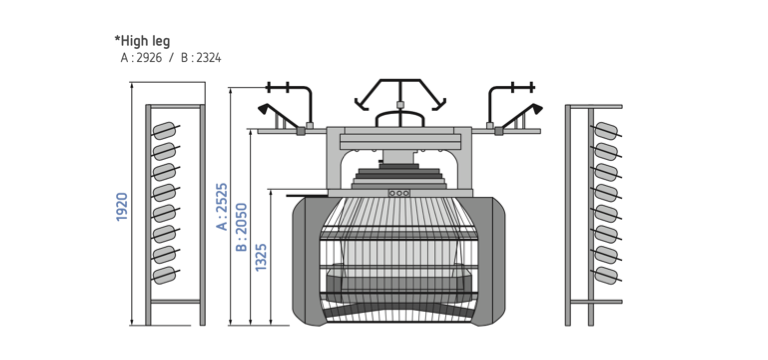

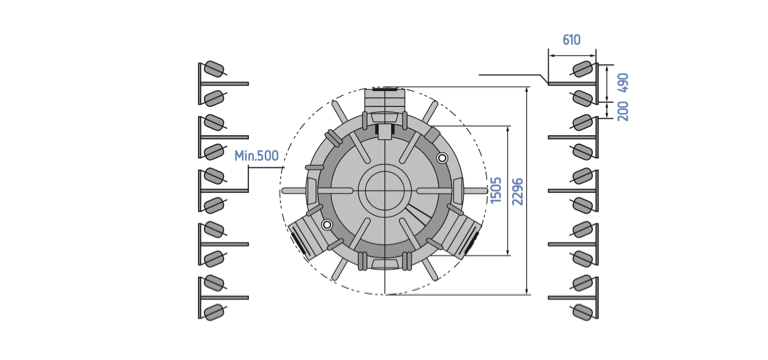

STANDARD DIMENSIONS
PACKING DIMENSIONS
| KYPL-V | 30” Diameter |
|---|
| Approx. Net weight | 2,600kg |
| Approx. Gross weight | 3,000kg |
| Case size (mm) | 2,370x2,250x2,270 (Length Width Height) |
FABRIC VARIETY
