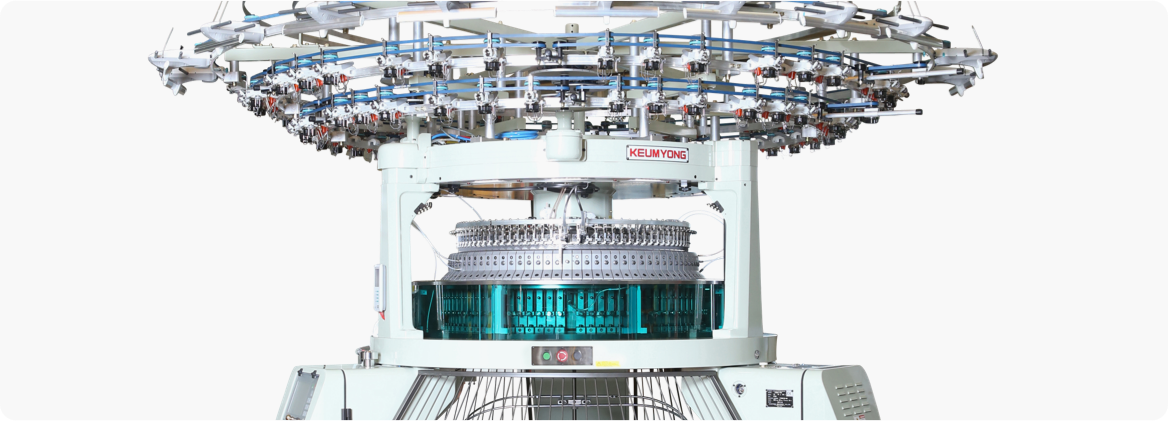

Double Knit Mini-Jacquard Knitting Machine

This Model is the latest 3-position technology for advanced double knit mini-Jacquard machine. Patterns are adjusted by manual selector with fast, simple and unlimited 3-position(knit,tuck,miss) technique to produce any patterns.

STANDARD SPECIFICATION

DIAMETER	GAUGE(N.P.I)	NO. FEEDER	NO. NEEDLE	SPEED(R.P.M)

30"	20-28G	60F 72F	20G1,872	18-22
			22G2,088
			24G2,268
			28G2,268

34"	20-28G	68F 84F	20G2,124	18-22
			22G2,340
			24G2,556
			28G2,988

36"	20-28G	72F 84F	20G2,268	17-21
			22G2,484
			24G2,700
			28G3,168

38"	20-28G	76F 92F	20G2,376	15-19
			22G2,628
			24G2,880
			28G3,348

FEEDING DEVICE	Positive Feeding Device
DRIVING	7.5HP AC Motor & Inverter
CYLINDER CAMS	3 Position of needle selection (Knit, Tuck &Miss) by 36 steps of selector
DIAL CAM RACE	2 needle tracks, Independently adjustable to Knit, Miss, Tuck & Supporting
STRUCTURE	2 to 3 colors Jacquard pattern system

- Needle selection at cylinder by selector

- Cylinder 3 position needles selection

- Unlimited creativity in pattern designs

OPTIONAL PARTS

• KYMS(Keumyong Yarn Measuring System)

  - Elastane yarn feeding device

  - Positive yarn feeding device

• High leg type frame for big roll
• Real time production monitoring system

  - Take-up device

  - Fabric cutting device

INTEGRATED CONTROLLER

• Fully integrated driving control mode with characters and graphic
• Self-diagnosis and alarm function
• Auto take-down tension and speed control system
• Easy setting method and bar-graphic digital indicating for all functions

STANDARD DIMENSIONS

PACKING DIMENSIONS

KDMJ-72V	30” Diameter	36” Diameter

Approx. Net weight	3,100kg	3,400kg
Approx. Gross weight	3,700kg	4,000kg
Case size (mm)	2,460x2,270x2,250 (Length Width Height)	2,460x2,270x2,250 (Length Width Height)

FABRIC VARIETY
