High Quality Fabrics at Single Knitting Machine

Are the most productive single jersey machines incorporating computer designed solid type closed camming giving positive needle control to ensure perfect stitch definition and high quality single jersey coarse fabrics at super high production and efficiency rates with minimum operative maintenance costs.

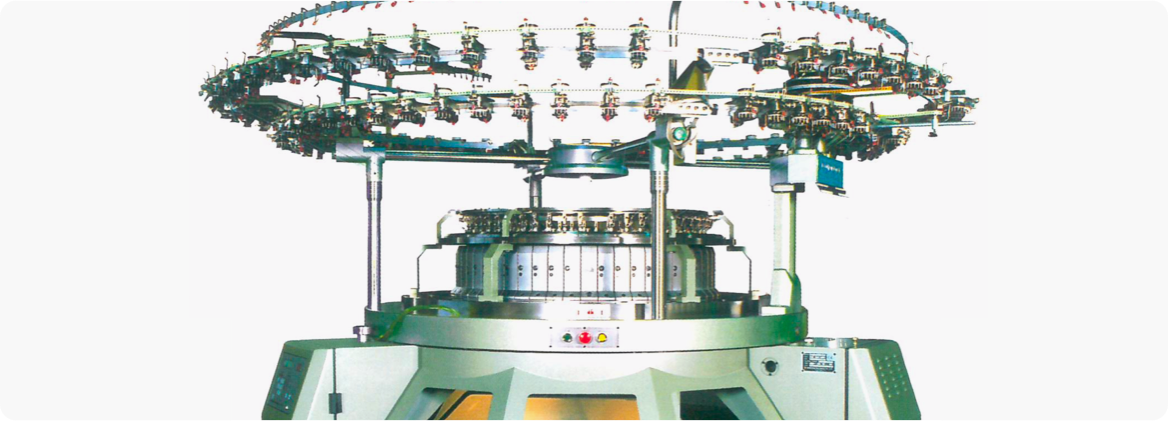

KM-1.5WV

DIAMETER	GAUGE(N.P.I)	FEEDS	SPEED(R.P.M)

30"	7-9	45F	30
36"	7-9	54F	25

STANDARD SPECIFICATIONS

• Cylinder diameter, needles per inch, number of feeds are briefly described as above, but our production range is covering almost specifications for circular knitting machine. So please order the machine according to your requirements.
• Cylinder of this model has 2 cam tracks
• AC Motor with inverter control unit
• Plating fabrics can be knitted by provided yarn carrier and yarn carrier plates are purchased
• Positive yarn feeding device
• Side creel stand with double tie
• Venti-Cleaner
• Spreader size ring system
• Speed of machine depending upon yarn used, kitting condition, gauge etc. the machine Speed can be either increased or decreased. So please select the optimum speed for the machine according to the machine condition. The speed figures shown on this table are given only as a reference

OPTIONAL PARTS

• Additional cams when increasing cam in the cylinder for fabric potential
• Knitting Lycra yarns in plating construction by using Memminger MER system

STANDARD DIMENSIONS

PACKING DIMENSIONS

KM-1.5WV4T	30” Diameter

Approx. Net weight	2,450kg
Approx. Gross weight	2,750kg
Case size (mm)	2,440x2,270x2,550 (Length Width Height)

Fabric Variety
