KM-SFC
Double fleece Knitting Machine
High quality double fleece fabric at high production having 3 feeders per diametrical inch with 4 cam tracks in the cylinder
KM-SFC
| DIAMETER | GAUGE(N.P.I) | FEEDS | SPEED(R.P.M) |
|---|
| 26" | 14-24G | 78F83F | 28-32 |
| 30" | 14-24G | 90F96F | 25-28 |
| 32" | 14-24G | 96F102F | 22-25 |
| 36" | 14-24G | 108F115F | 20-23 |
Ex. 30” Dia, 16 Gauge, 90F Feeds, 28 rpm
Knit in & tie in Cotton 30’s
Lay in Cotton 10’s Capacity : 20kg/h
STANDARD SPECIFICATIONS
- Cylinder diameter, needles per inch, number of feeds are briefly described as above, but our production range is covering almost specifications for circular knitting machine. So please order the machine according to your requirements
- AC Motor with inverter control unit
- Memminger MPF positive yarn feeding device
- Side creel stand with double tie
- Spreader size ring system
- Speed of machine depending upon yarn used, kitting condition, gauge etc. the machine Speed can be either increased or decreased. So please select the optimum speed for the machine according to the machine condition. The speed figures shown on this table are given only as a reference
Yarn-Count/Machine Gauge Reference
| Optimun Yarn Count for tie in & knit in |
14G to 22G | 30.1 (120D) |
| 24G | 30/1-40/1(00D) | |
| Optimun Yarn Count for Lay in |
14G to 22G | 10/1 (500D) |
| 24G | 16/1 (300D) |
OPTIONAL PARTS
- Real time production monitoring system
- Conversion to single jersey is available by conversion kit
(Conversion kit : cam, yarn carrier, sinker plate & base, etc.)
- KYMS(Keumyong yarn Measuring System)
- Open width take-up device
- High leg frame for big roll
INTEGRATED CONTROLLER
- Fully integrated driving control mode with characters and graphic
- Self-diagnosis and alarm function
- Auto take-down tension and speed control system
- Easy setting method and bar-graphic digital indicating for all functions

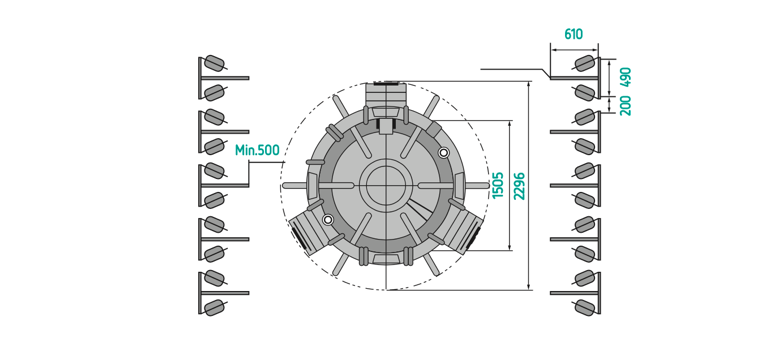

STANDARD DIMENSIONS
PACKING DIMENSIONS
| KM-SFC | 30” Diameter |
|---|
| Approx. Net weight | 2,100kg |
| Approx. Gross weight | 2,400kg |
| Case size (mm) | 2,460x2,060x2,150 (Length Width Height) |
FABRIC VARIETY
