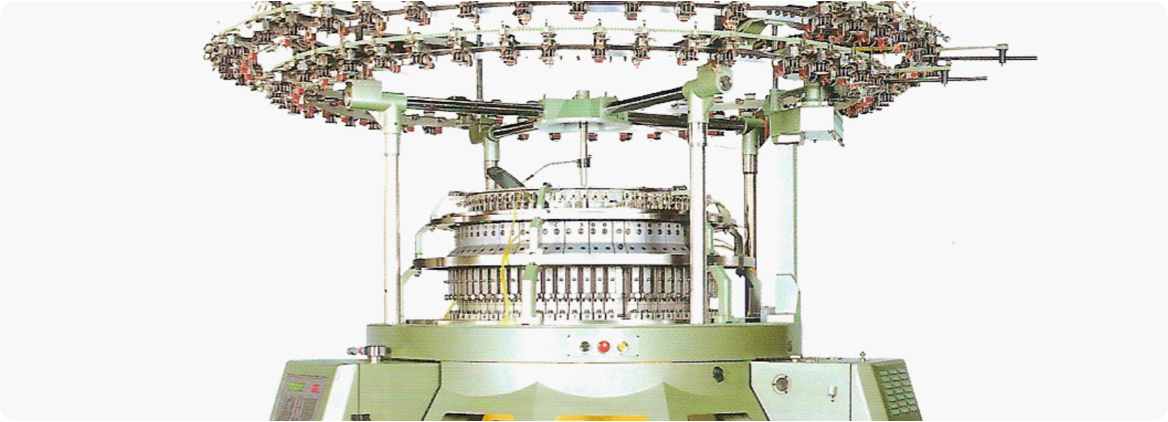

Single Knit Mini-Jacquard Knitting Machine

Model is the latest 3-position technology for advanced single knit mini-jacquard machine. Patterns are adjusted by manual selector. Fast, Simple unlimited 3-position(knit, tuck, welt) technique to produce any pattern.

KSMJ-72V

MODEL	Gauge(N.P.I)				Feeds	Speed(R.P.M)
	20	22	24	28

26"	1620	1800	1944	2268	62F	22-27
30"	1972	2052	2268	2628	72F	20-25
34"	2160	2376	2592	2952	84F	18-22

* Speed is depending on fabric structure and yarn material

STANDARD SPECIFICATIONS

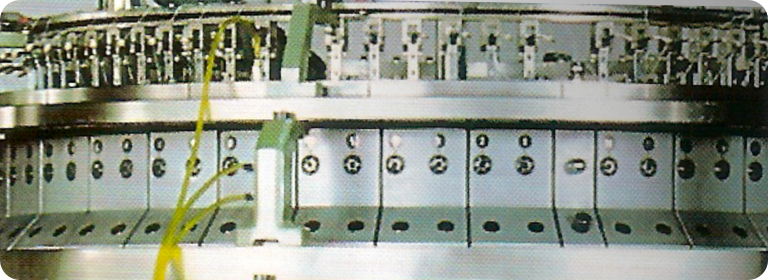

• The cylinder needle has 3 position selection by 37 steps selector with semi closed cam system
• Every cylinder needle can be moved to the miss, knit, tuck position

Pattern Area

2 color jacquard	3 color jacquard

36 course x 36 wales	24 course x 36 wales
36 course x 72 wales (mirror)	24 course x 36 wales (mirror)

Fabric Potential

• Single jersey plain, tuck patterns, inlay patterns, 2 and 3 color pattern
• Mirror or diagonal repeat jack set out

INTEGRATED CONTROLLER

• Fully integrated driving control mode with characters and graphic
• Self-diagnosis and alarm function
• Auto take-down tension and speed control system
• Easy setting method and bar-graphic digital indicating for all functions

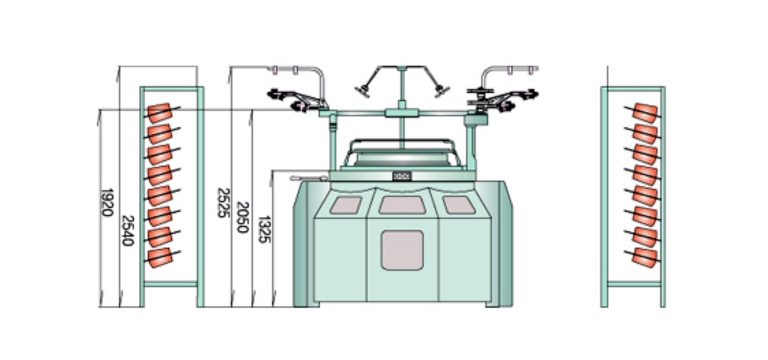

STANDARD DIMENSIONS

PACKING DIMENSIONS

KSMJ-72V	30” Diameter

Approx. Net weight	2,400kg
Approx. Gross weight	2,900kg
Case size (mm)	2,440x2,250x2,250 (Length Width Height)

FABRIC VARIETY
