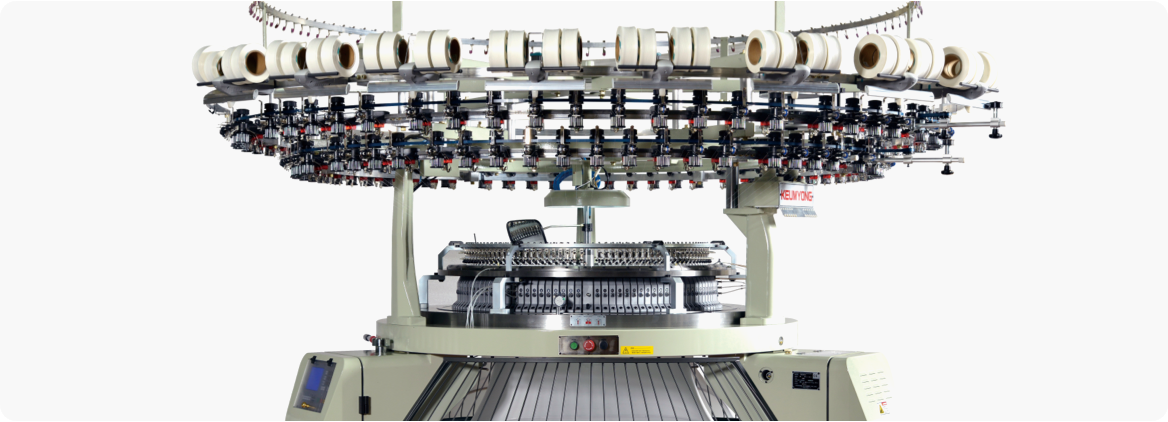

HIGH SPEED SINGLE JERSEY KNITTING MACHINE
MULTI-FEEDS SINGLE JERSEY KNITTING MACHINE

High speed multi-purpose single knit machine with a wide range of stitch for a top quality knitting. All of these furnish high production, easy pattern changing and high efficiency with integration control in single knitting machine.
The design of machine symbolized bobbin cone and applied curved edge for the worker’s safety. Equipped with new stable head bobbin type and higher efficiency work with curved safety door. Easy handling type with bobbin post.

KM-3WV

Available in 3 feeds per diametrical inch with 2 to 4 cam tracks in the cylinder from 12”DIA. To 38” DIA. In 20 gauge to 44 gauge.

KM-3.2WV

Available in 3.2 feeds per diametrical inch with 2 to 4 cam tracks in the cylinder from 12”DIA. To 40” DIA. In 18 gauge to 44 gauge.

KM-4WV

Available in 4 feeds per diametrical inch with 2 to 4 cam tracks in the cylinder from 12”DIA. To 38” DIA. In 20 gauge to 44 gauge.

KM-3WV, KM-3.2WV, KM-4WV

MODEL	DIAMETER	GAUGE(N.P.I)	FEEDS	SPEED(R.P.M)

KM-3WV	30"	20-44	90F	27-30
	34"	20-44	102F	25-27
	36"	20-44	108F	23-25
	38"	20-44	114F	20-23

KM-3.2WV

30"

18-44

96F

27-30

KM-4WV	30"	18-44	120F	22-25
	34"	18-44	136F	18-22
	36"	18-44	144F	18-20

STANDARD SPECIFICATIONS

• Cylinder diameter, needles per inch, number of feeds are briefly described as above, but our production range is covering almost specifications for circular knitting machine. So please order the machine according to your requirements.
• Cylinder cams for machines with 2 to 4 cam tracks are 3 position select available by changing cams. For single jersey machines when machine is ordered with 4 cam tracks in the cylinder, 4 knit cams, 1 tuck and 1 welt cams are supplied with the machine as standard per feed. Others are optional.
• AC Motor with inverter control unit
• Plating fabrics can be knitted by provided yarn carrier and yarn carrier plates are purchased
• Positive yarn feeding device
• Side creel stand with double tie
• Venti-Cleaner
• Spreader size ring system
• Speed of machine depending upon yarn used, kitting condition, gauge etc. the machine Speed can be either increased or decreased. So please select the optimum speed for the machine according to the machine condition. The speed figures shown on this table are given only as a reference

Optional Parts

• KYMS(Keumyong Yarn Measuring System)
• High leg type frame for big roll
• Elastin yarn feeding device
• Real time production monitoring system

INTEGRATED CONTROLLER

• Fully integrated driving control mode with characters and graphic
• Self-diagnosis and alarm function
• Auto take-down tension and speed control system
• Easy setting method and bar-graphic digital indicating for all functions

STANDARD DIMENSIONS

PACKING DIMENSIONS

KM-3WV	30” Diameter

Approx. Net weight	2,400kg
Approx. Gross weight	2,800kg
Case size (mm)	2,440x2,270x2,250 (Length Width Height)

FABRIC VARIETY
