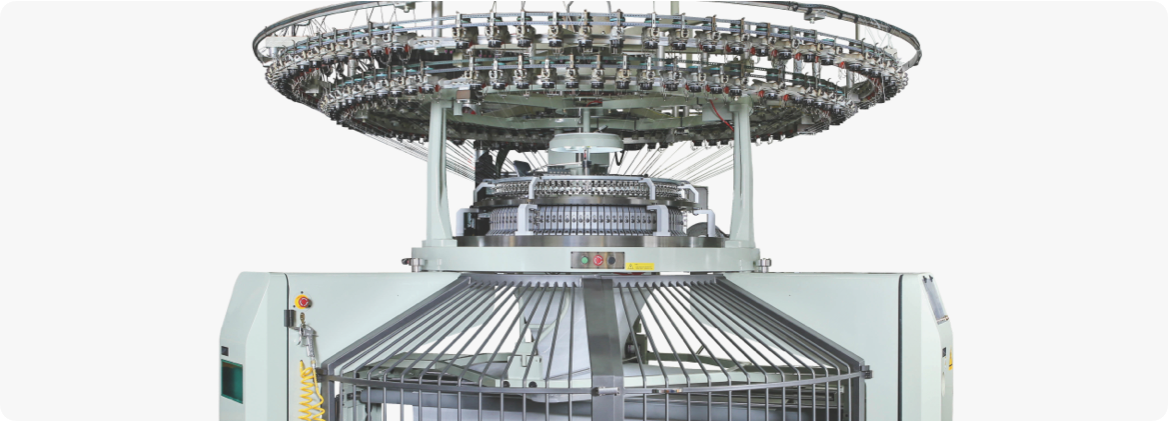

SINGLE JERSEY WITH OPEN WIDTH TAKE-UP DEVICE

Are the most productive single jersey machines incorporating computer designed solid type closed camming giving positive needles control to ensure perfect stitch definition and high quality single jersey fabrics at super high production and efficiency rates with minimum operative maintenance costs.

KM-3WV X / 3.2WV X

Available in 3 feeds/3.2 feeds per diametrical inch with 2 to 4 cam tracks in the cylinder from 20”DIA To 48” DIA. In 20 gauge to 32 gauge.

Diameter	Gauge(N.P.I)	No. Feeder	No. needle	Speed(R.P.M)

30"	14-24G / 16-36G / 38G-50G	90F 96F	20G1,896	35-38
			24G2,256
			28G2,640

32"	14-24G / 16-36G / 38G-50G	96F 102F	20G2,016	32-35
			24G2,400
			28G2,808

34"	14-24G / 16-36G / 38G-50G	102F 108F	20G2,136	30-33
			24G2,568
			28G3,000

36"	14-24G / 16-36G / 38G-50G	108F 116F	20G2,256	27-30
			24G2,712
			28G3,168

• CYLINDER CAMS3 Position of needle selection (Knit, Tuck & Miss) by changing cams
• STRUCTURE3 feeders / 3.2 feeders per diametrical inch

KM-4WV X

AVAILABLE IN 4 FEEDS PER DIAMETRICAL INCH WITH 2 TO 4 CAM TRACKS IN THE CYLINDER FROM 20”DIA TO 48”DIA. IN 20GAUGE TO 32GAUGE.

Diameter	Gauge(N.P.I)	No. Feeder	No. needle	Speed(R.P.M)

30"	20-36G	120F	20G1,896	35-38
			24G2,256
			28G2,640

32"	20-36G	128F	20G2,016	32-35
			24G2,400
			28G2,808

34"	20-36G	136F	20G2,136	30-33
			24G2,568
			28G3,000

• CYLINDER CAMS3 Position of needle selection (Knit, Tuck & Miss) by changing cams
• STRUCTURE4 feeders per diametrical inch

FABRIC POTENTIAL

Fine quality at high production rates with single jersey high speed machines in the highest quality fabric such as lacoste, crepe.

STANDARD SPECIFICATION

• Cylinder diameter, needles per inch, number of feeds are briefly described as above, but our production range is covering almost specifications for circular knitting machine. So please order the machine according to your requirements
• Cylinder cams for machines with 2 to 4 cam tracks are 3 position select available by changing cams. For single jersey machine ordered with 4 cam tracks in the cylinder, 4 knit cams, 1 tuck and 1 welt cams per feed are supplied with the machine as standard. Others are optional.
• AC Motor with inverter control unit
• Plating fabrics can be knitted by provided yarn carrier and yarn carrier plates are purchased
• Positive yarn feeding device
• Side creel stand with double tie
• Venti-Cleaner
• Spreader size ring system
• Speed of machine depending upon yarn used, knitting condition, gauge etc. the machine Speed can be either increased or decreased. So please select the optimum speed for the machine according to the machine condition. The speed figures shown on this table are given only as a reference

OPTIONAL PARTS

• KYMS(Keumyong Yarn Measuring System)
• High leg type frame for big roll
• Real time production monitoring system

  - Open width take-up device

  - Fabric cutting device

INTEGRATED CONTROLLER

• Fully integrated driving control mode with characters and graphic
• Self-diagnosis and alarm function
• Auto take-down tension and speed control system
• Easy setting method and bar-graphic digital indicating for all functions

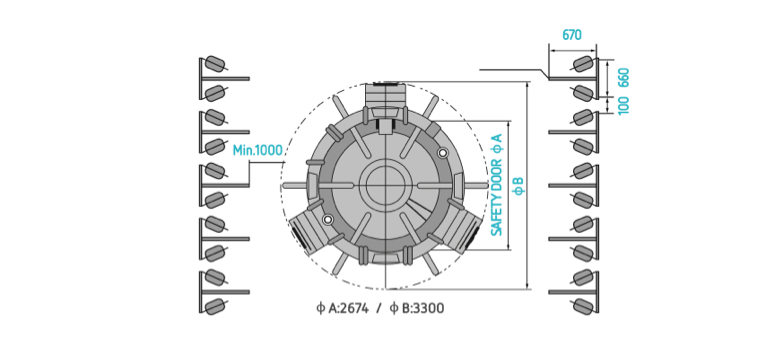

STANDARD DIMENSIONS

PACKING DIMENSIONS

KM-WVX	30” Diameter	34” Diameter

Approx. Net weight	2,800kg	3,000kg
Approx. Gross weight	3,300kg	3,500kg
Case size (mm)	3,400x2,270x2,250 (Length Width Height)	3,400x2,270x2,250 (Length Width Height)

FABRIC VARIETY
